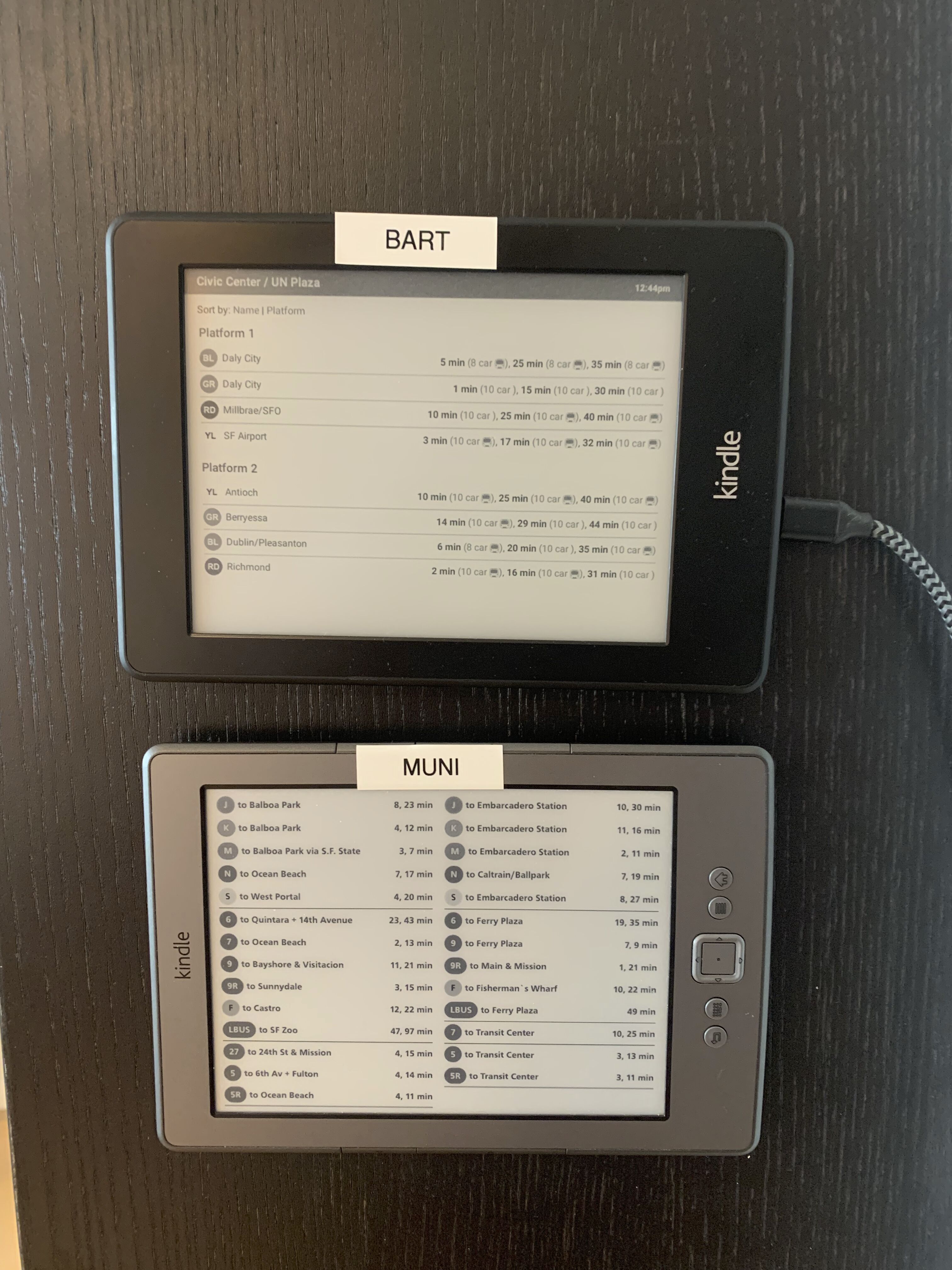

I live in San Francisco, and I don’t own a car. This means that I walk or take public transit nearly everywhere that I go. There’s a lot of ways to find out when the next bus/train/tram/trolleybus/cable car/ferry is stopping nearby so that you don’t miss it. There are no shortage of apps that will guide you to your destination using any and all means of public transit, and those are great! I particularly like CityMapper. But apps aren’t always the best for getting around a city, especially for leaving your own apartment.

The most frustrating thing about these transit apps is that they assume that they’re going to guide you through the entire transit process. They often work on the “where are you and where are you going” model of something like Google Maps. This is great for people new to a city, or exploring a new area of the city, they can get all the guidance they need. But when I’m leaving from my own apartment, I know where the closest transit stops are and where they go. I don’t need an app to tell me which line to take to go downtown, I really just need to know when each transit line has an upcoming train/tram/bus. These goals are at odds with the goals of a general-purpose navigation app that’s somewhat useful to everyone in a broad range of circumstances, so like most truly useful things we need to build it ourselves.

I was first inspired to build this project after reading Matt Healy’s 2021 blog post on building a smart home display with a Kindle. Matt used an old Kindle to display things like weather, calendar events, meal plans, and house cleaning schedules. I figured I could probably adapt his guide and make myself an always-available display of upcoming transit arrival at the stops nearest to my apartment. I also saw Ben Borgers' post about using an old Nook as an iCloud photo frame. These devices are super cool, and can be had for quite cheap. I had a few old Kindles lying around collecting dust, and I was excited at the prospect of using them for something productive again.

# Jailbreaking your Kindle

The first step is to jailbreak your Kindle. I’m not going to detail the steps required to accomplish this here, there are numerous guides out there. The mobileread wiki and forums were an invaluable resource during this process. The main goal here is to enable USBNet, this will give us the ability to SSH into the kindle, which we will use to set up the cron job that updates the display.

• Jailbreak
• All hacks
  • Launcher
  • Package installer
  • Usbnet - enabled via the package installer
  • Setting up usbnet in macOS

# Get an Image on the Kindle

Now that the Kindle is jailbroken, I set out trying to get some image to display on the Kindle. It was no use setting up a system to automatically build the images for showing on the Kindle if I couldn’t first get something on there to show up in a readable state. This was much more of an adventure than I was expecting.

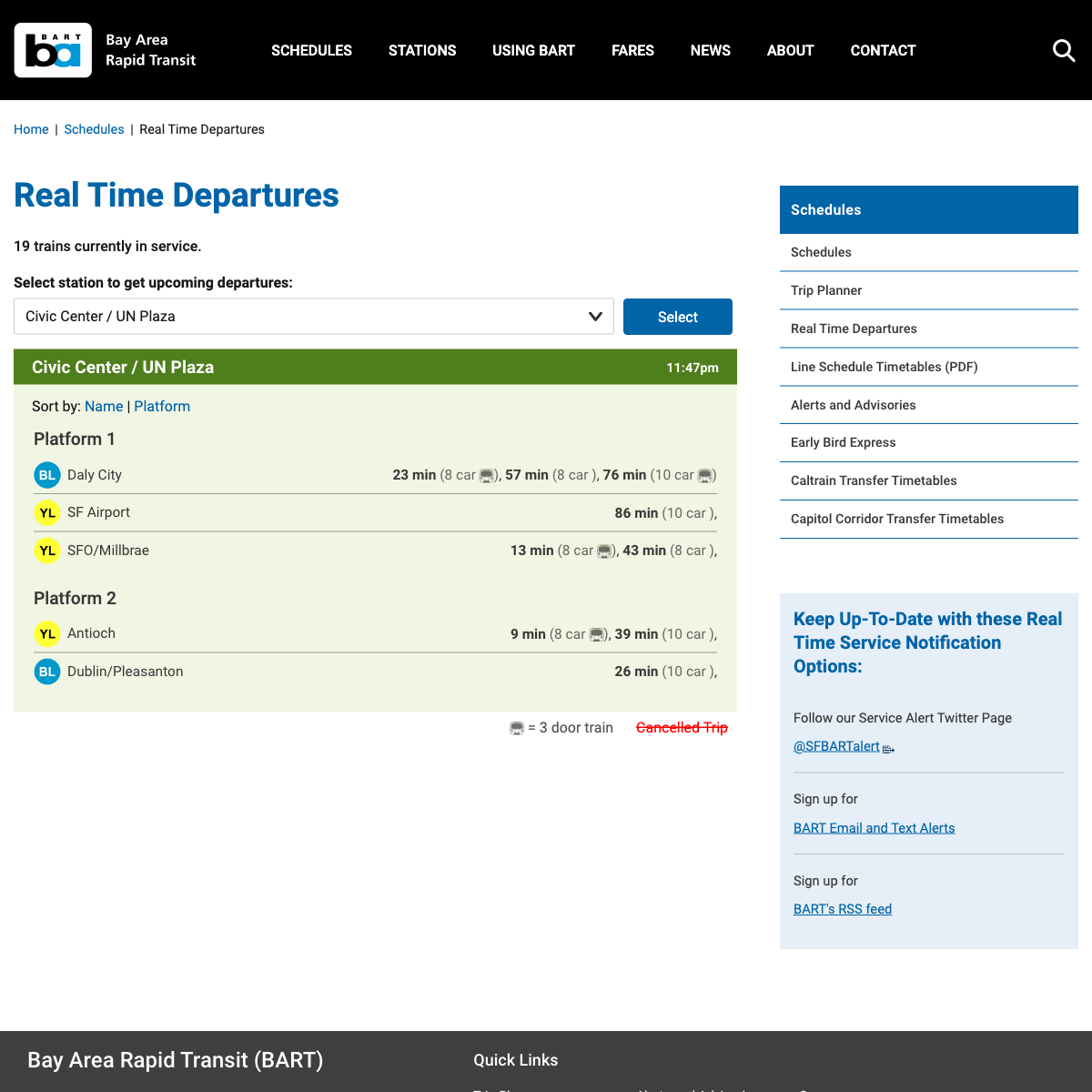

First, I identified the image that I wanted to Display. Thankfully, BART (the main transit agency that I used at the time I started the project) has a website that provided basically exactly what I wanted. BART’s Real Time Departure page shows all of the upcoming trains at whatever station you want, and it even refreshes itself in the background.

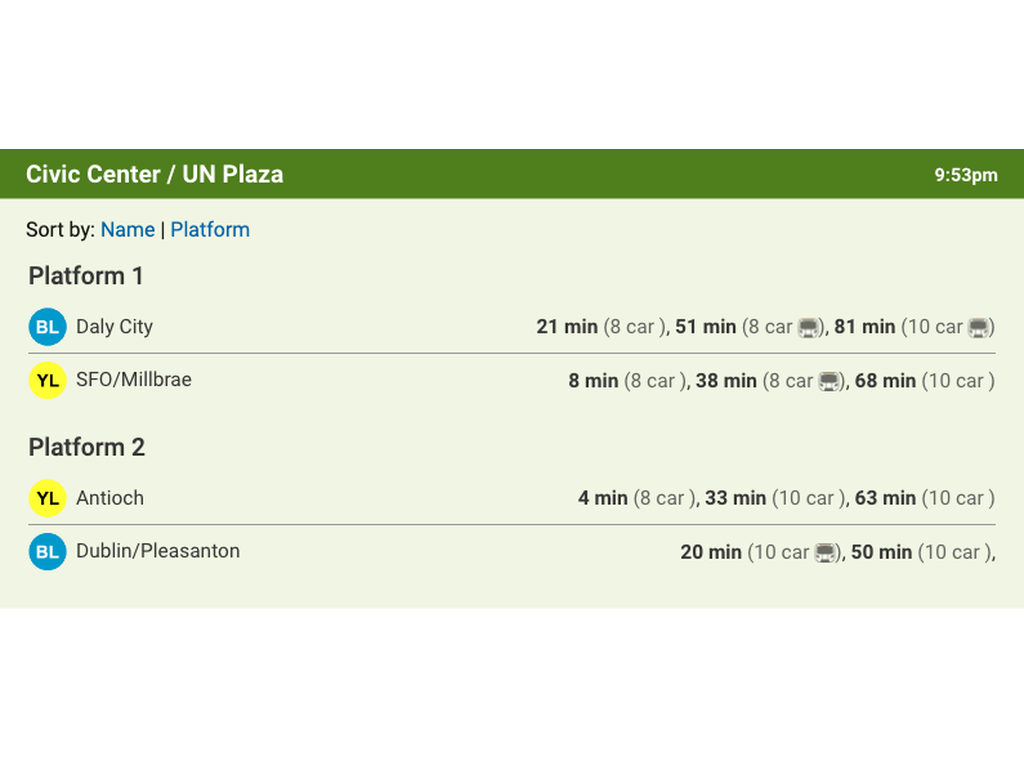

I grabbed a screenshot of the central area of the page, which seems almost designed to be a standalone dashboard, transferred it to the Kindle, and attempted to display it. The Kindle CLI has a tool that can be used to display image files easily.

# On laptop
$ python3 -m http.server

# On Kindle
$ wget 192.168.50.28:8000/bart-screenshot.png
# Clear the e-ink display
$ eips -c
# Display the PNG file on the display
$ eips -g bart-screenshot.png

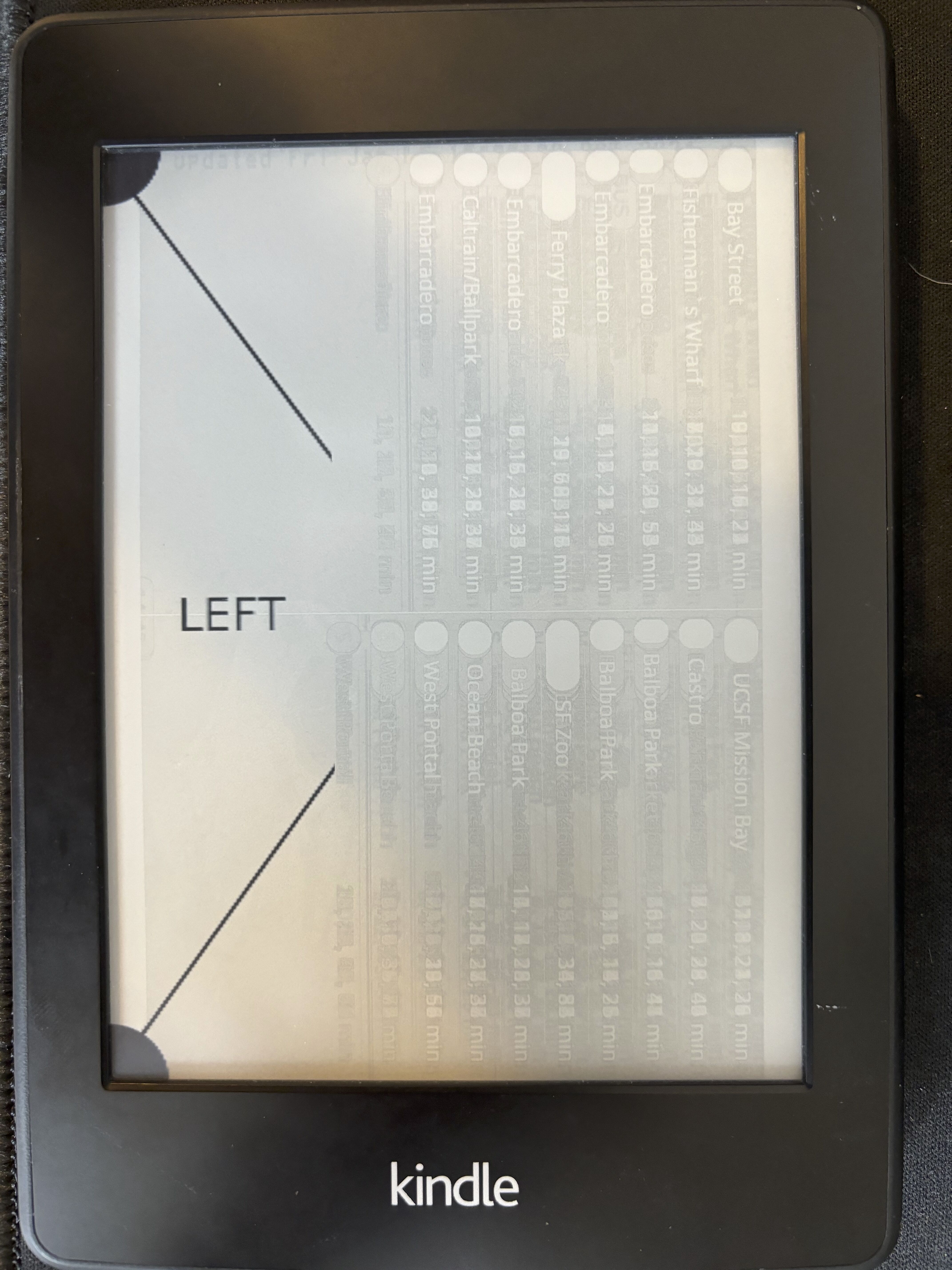

After attempting to display my screenshot, it was apparent that it wouldn’t be quite so simple.

The image was stretched to such an extreme extent that it was unusable. I went back to the drawing board. I created a “calibration image” in Photopea, my image editor of choice, and set out trying to figure out where I went wrong. The image was the exact size of my Kindle’s display - 1024x758. After displaying the image on my Kindle, I started to piece together what might be going on. Take a look at the expected PNG image, and what actually showed up on the Kindle display:

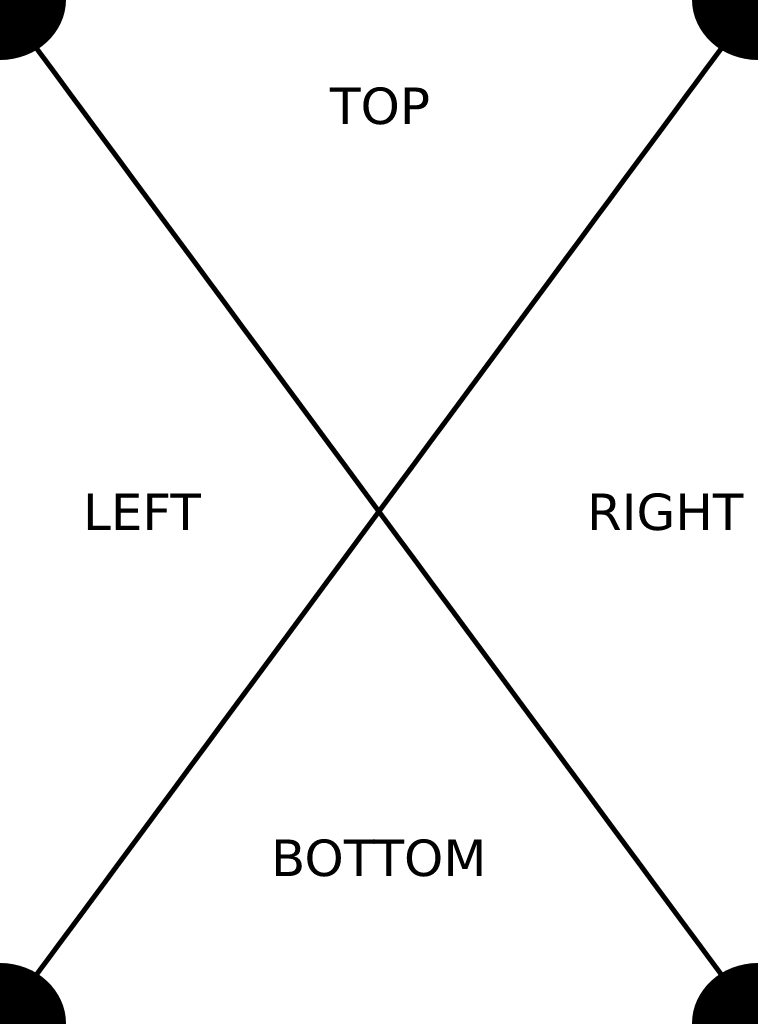

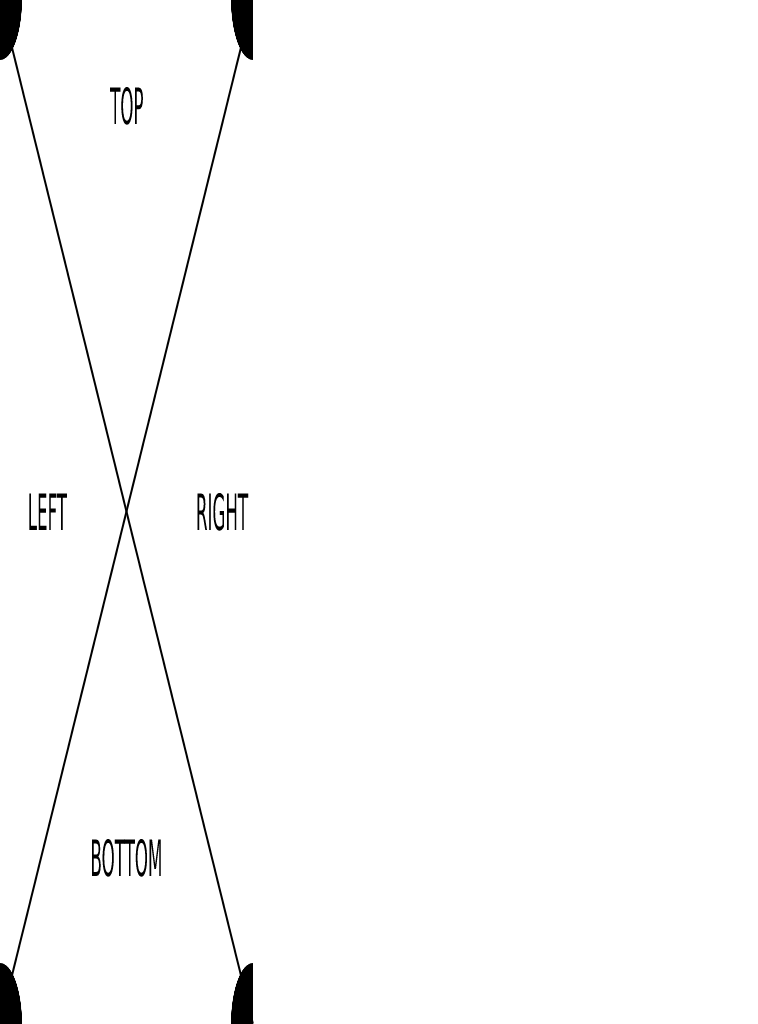

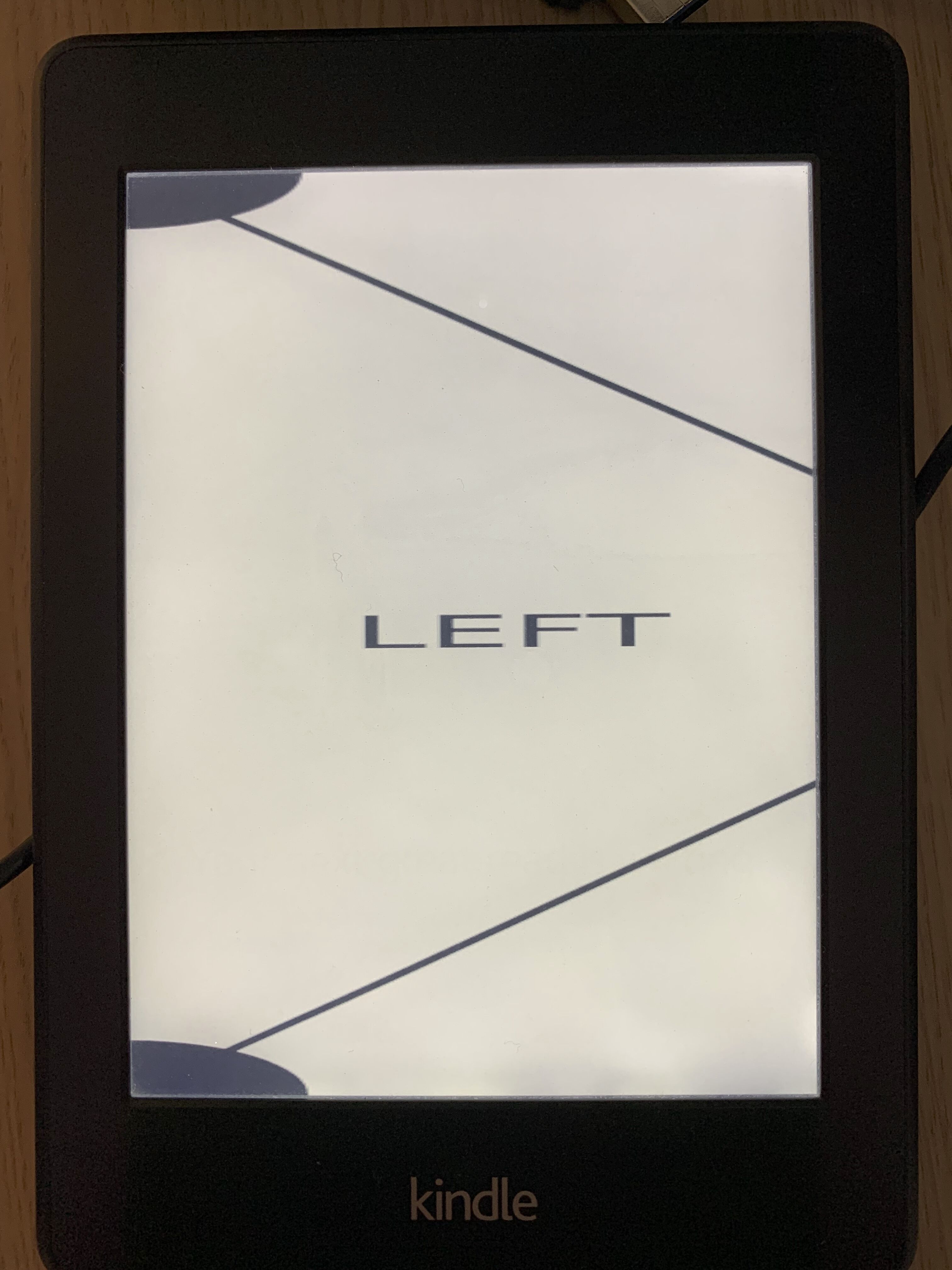

Based on the stretch of the image, and the fact that the image seemed to cut off around 33% of the way through the x-axis, I tried shrinking the image’s horizontal dimension to 1/3, so it was now 1024x252. This provided slightly better results, but something was still very clearly wrong.

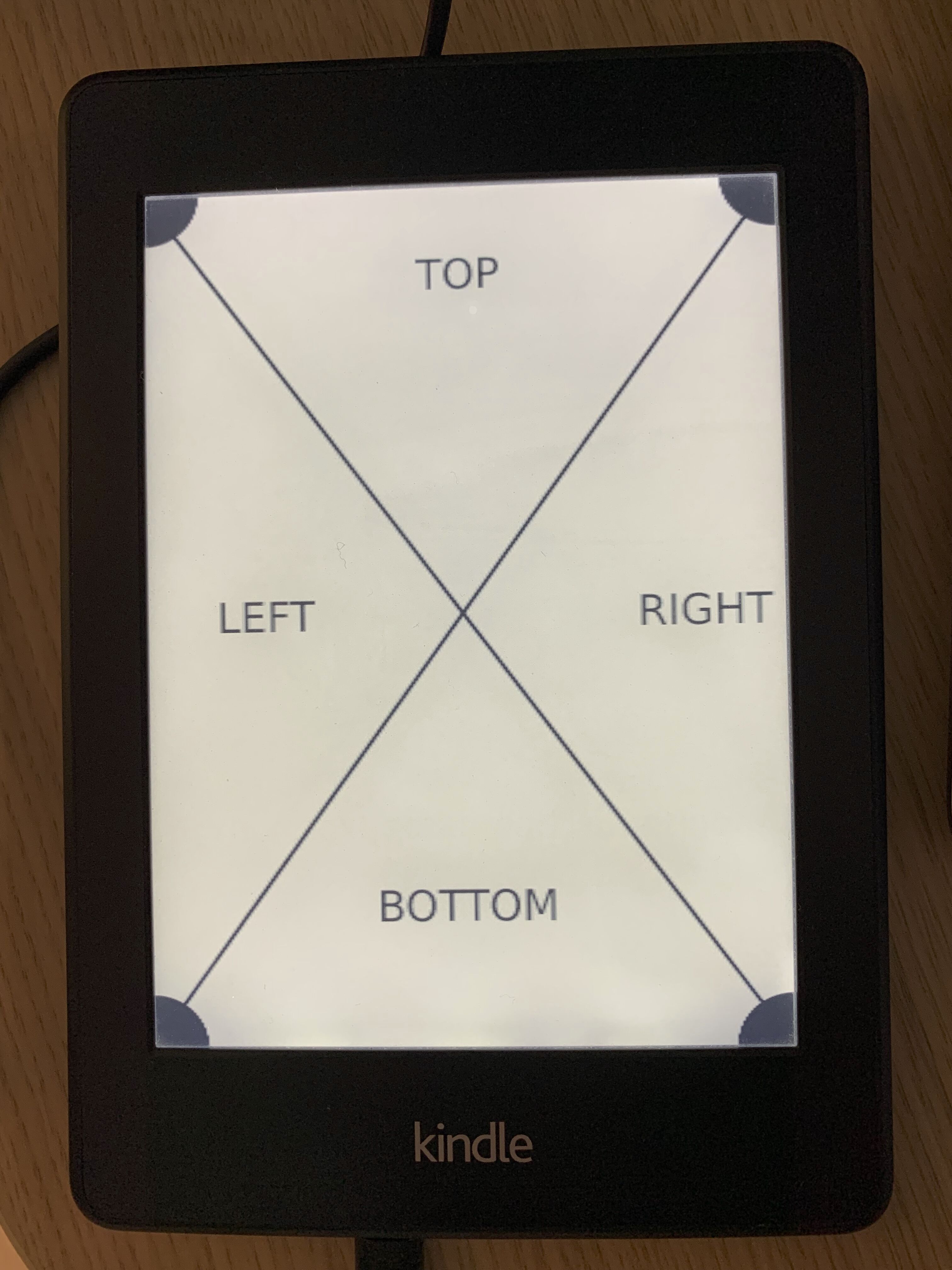

I noticed this time that the image appeared to be un-stretched, but it didn’t fill the entire screen. I reasoned that the Kindle must be displaying only the pixels that fell within the bounds reported in the PNG metadata. I created another calibration image which had the full size of the Kindle display, but only put data in the left 33% of it. This was the most promising result yet.

I applied this “empty space & stretching” technique to my BART screenshot, and displayed it on the page. initially, this looked very promising. On closer inspection however, I was disappointed.

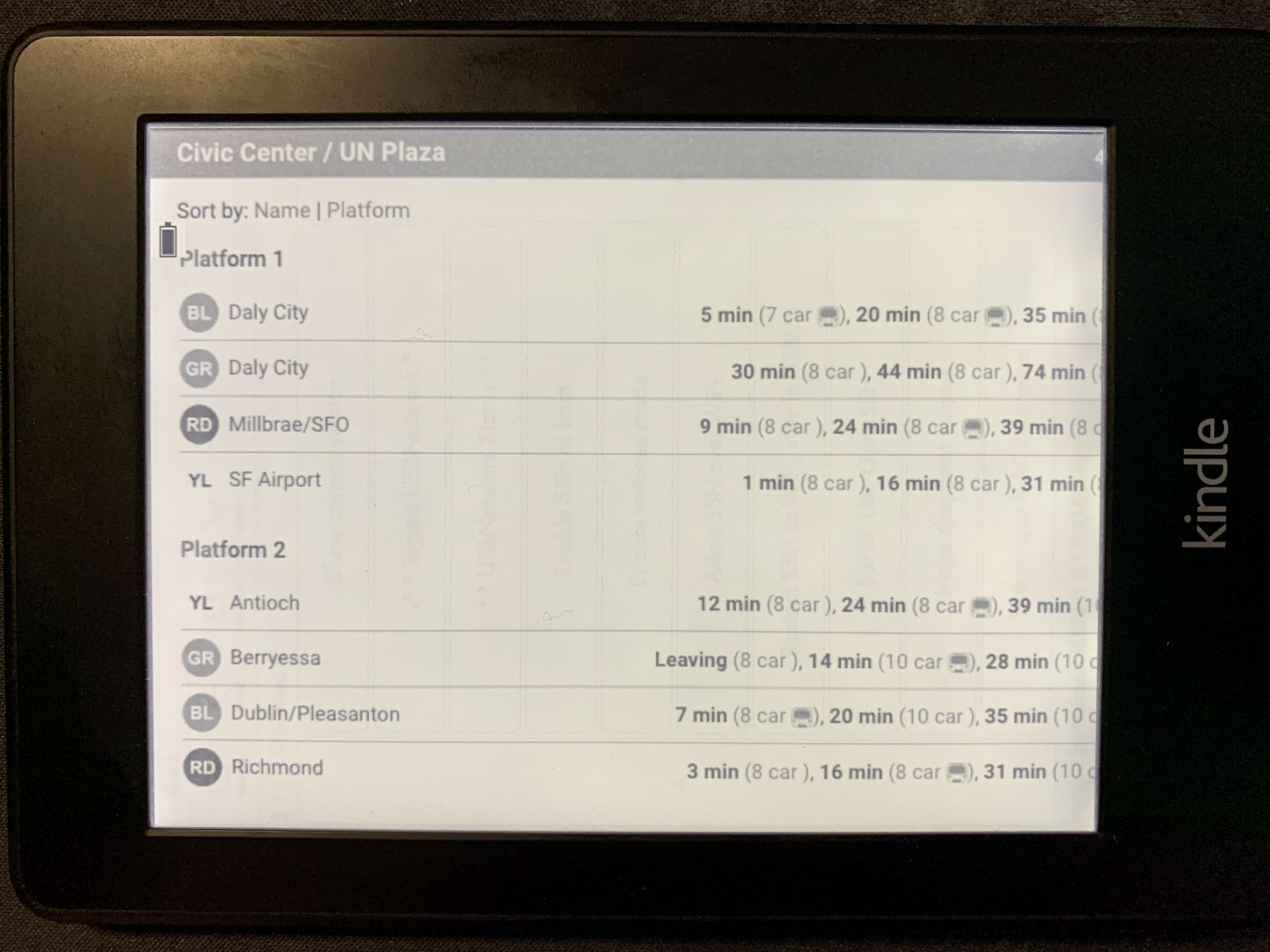

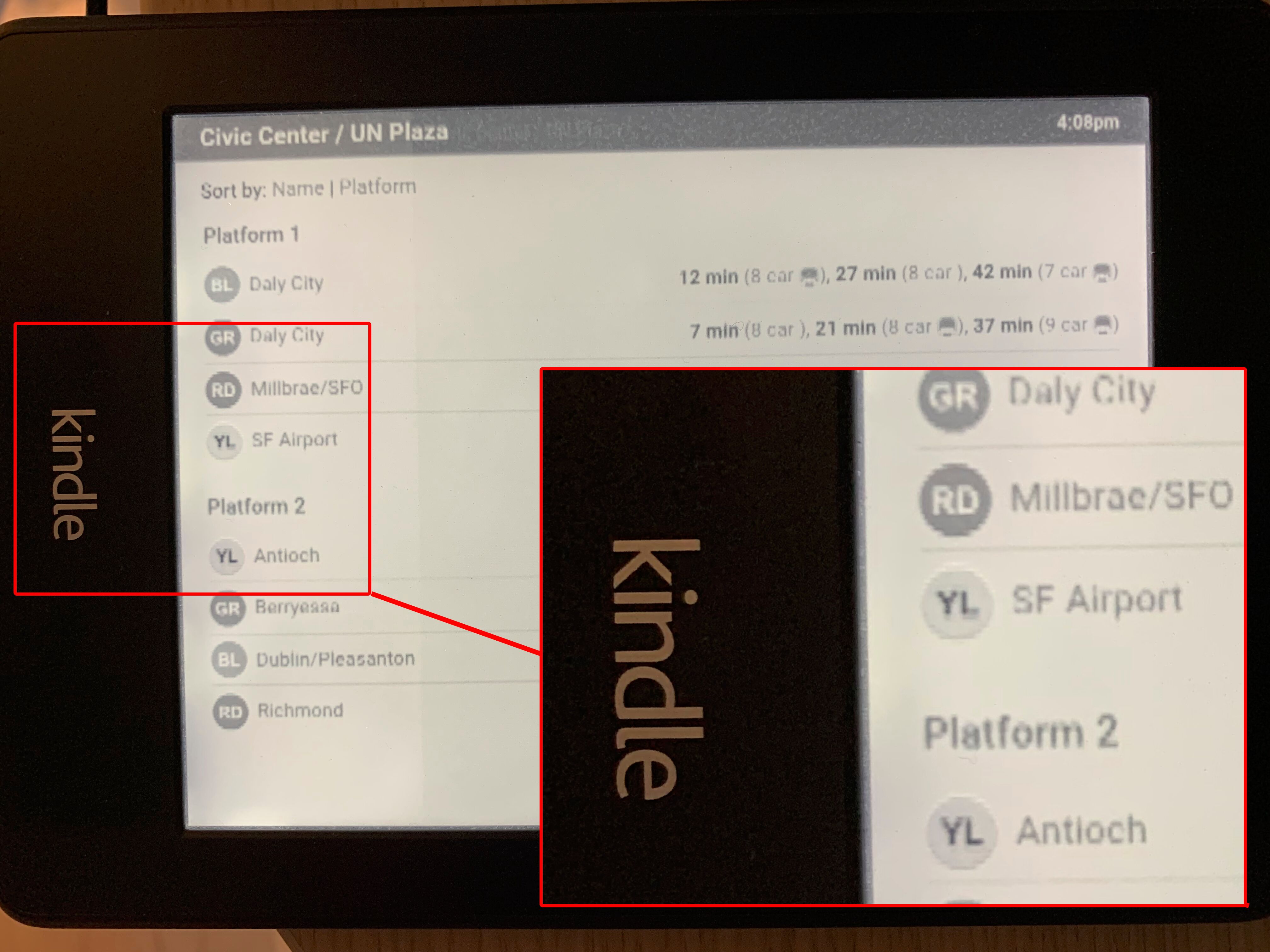

The image appeared extremely pixelated on the Kindle display. Notice in the image that the text “Kindle” on the frame is very clear, the pixelation on the display is not because of the camera, it is an issue with the display.

Matt Healy had helpfully linked to the code he was using to drive his Kindle display, and I figured he must have figured this issue out if his Kindle was working correctly. I looked through his Node.js code and quickly found this critical function:

function convert(filename) {
  return new Promise((resolve, reject) => {
    const args = [
      filename,
      "-gravity",
      "center",
      "-extent",
      "600x800",
      "-colorspace",
      "gray",
      "-depth",
      "8",
      filename,
    ];
    execFile("convert", args, (error, stdout, stderr) => {
      if (error) {
        console.error({ error, stdout, stderr });
        reject();
      } else {
        resolve();
      }
    });
  });
}

He feeds his screenshots into ImageMagick’s convert utility and does a few things with them, but of particular note are these arguments

-colorspace gray -depth 8

Of course! I was feeding a 24-bit (3 channel RGB) PNG image into the Kindle’s software, but the Kindle has only a greyscale screen, so they never bothered to add support for 24-bit PNG files. The “normal” image appears stretched because as far as the Kindle is concerned, all of the pixels are triplicated, it just naively reads image data out of the PNG blob and assumes it’s an 8-bit image. It cut off the 1/3 width image partway through the display because the width metadata on the image made the Kindle think it should only render it over 1/3 of the screen. The 1/3 width data, full-width metadata image works but looks poor because 2/3 of the resolution is being sacrificed. After using convert to turn my screenshot into an 8-bit PNG image, it displays correctly on the Kindle.

Now that I can display an image that looks alright, I padded the image so that it would fully fit within the viewport of the Kindle and re-displayed it.

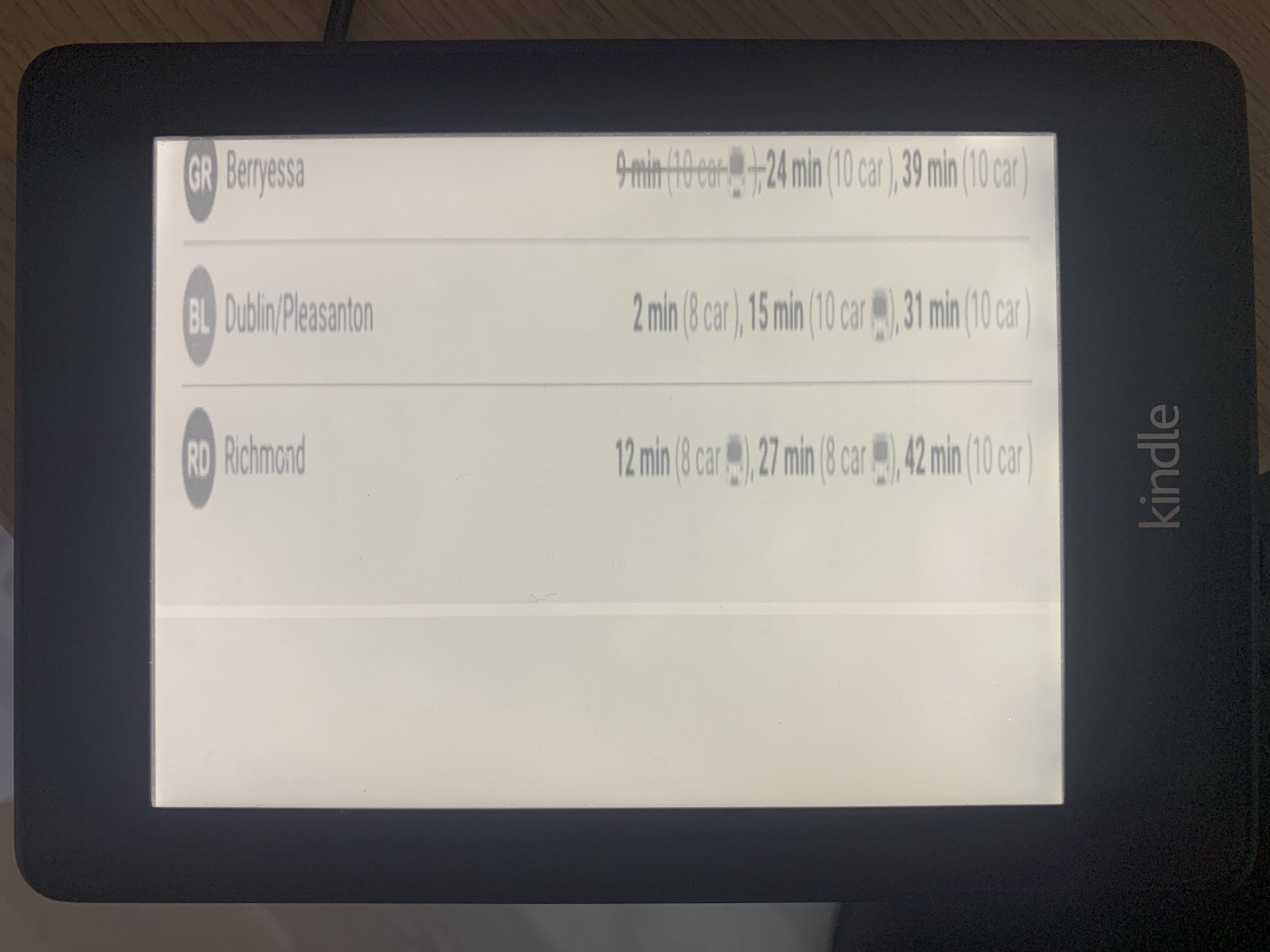

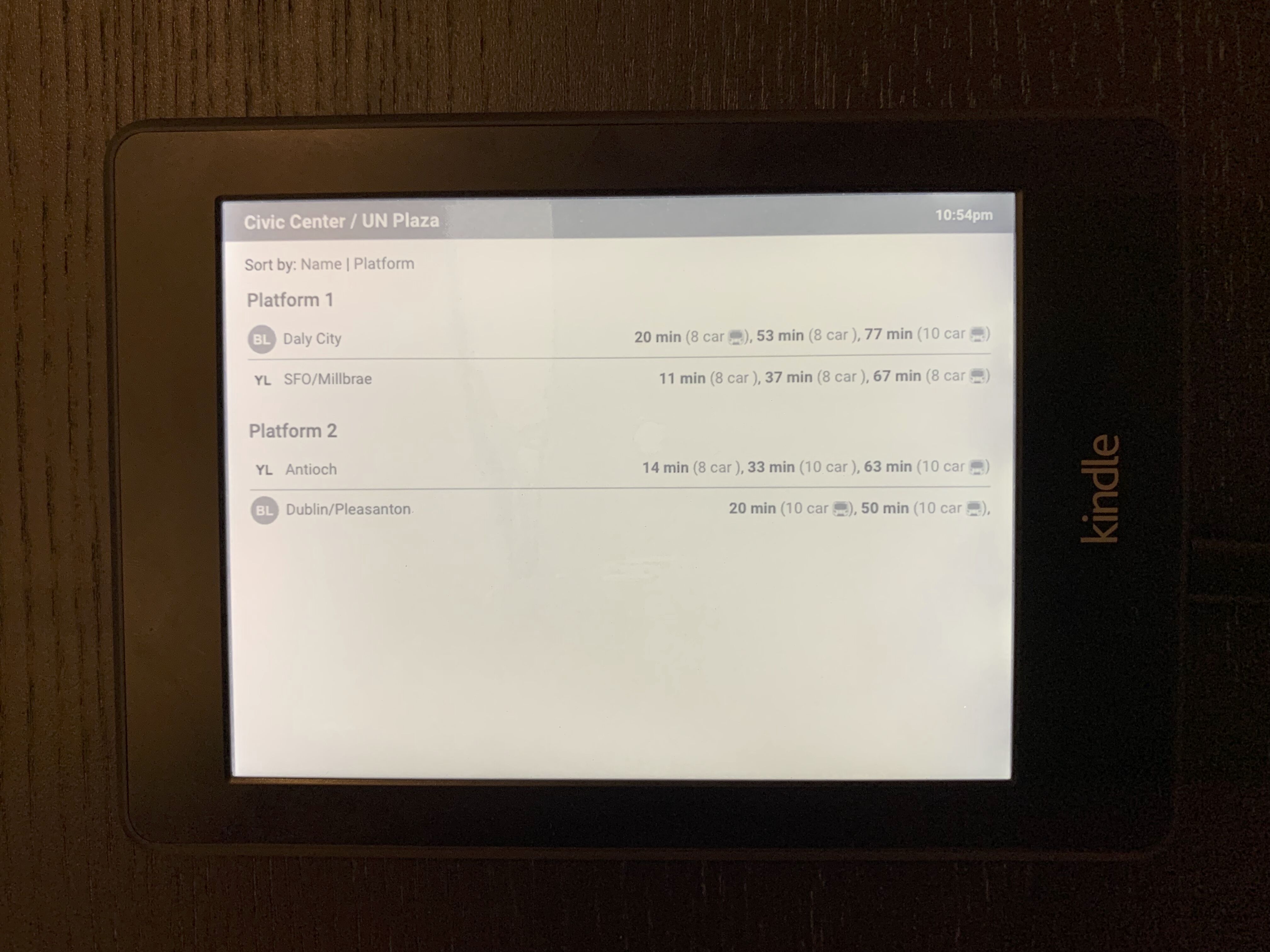

And there it is!

Now that we know how to make an image show up on the Kindle, we need to build something that will provide us with an endless stream of useful images.

# Serve useful images

Remember that our actual goal here is to display transit arrival times, which aren’t very helpful if you post them once and they never change. We need to build something capable of generating Kindle-compatible screenshots if we want this project to actually be useful. Since there was already a UI provided by BART, I opted for the lazy approach. I built a Node.js server that used Puppeteer to take a screenshot of the part of the page I cared about, tweaked it to the size and color depth for the Kindle display, and returned it via an HTTP endpoint. I put the server on a Raspberry Pi and set the Kindle up to fetch images every minute via cron.

# On Kindle

# Add the wget/eips commands from above
$ vi /usr/bin/refresh-image
$ chmod +x /usr/bin/refresh-image

# Add the line `* * * * * /usr/bin/refresh-image`
$ vi /etc/crontab/root

# Restart the cron daemon so it runs our script
$ initctl restart cron

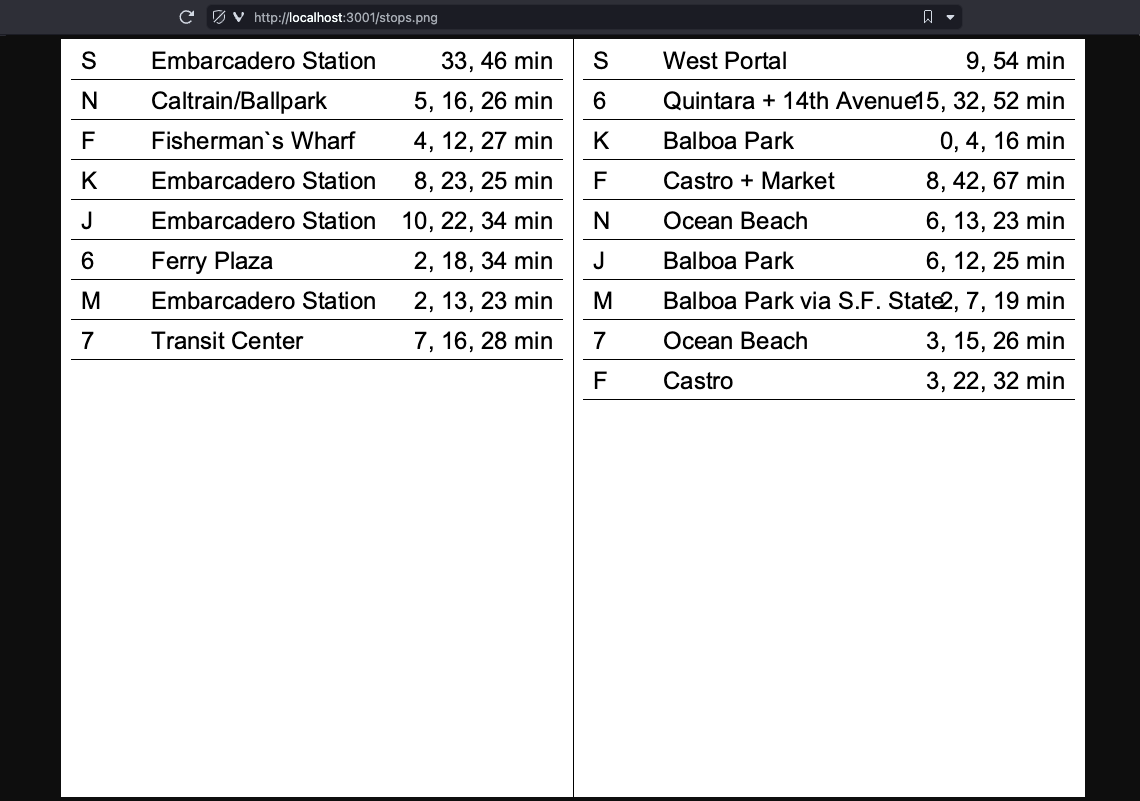

The Node.js version is very similar to the code that Matt created for his blog post, with one notable exception. Since the BART page had auto-refreshing built into it, I opened up a copy of the page at the beginning of the program’s start time and just let that refresh in the background instead of re-loading the page every time an HTTP request came in. I’m not going to spend much time on the design of this server, but if you’re interested the code is up on my github.

This system worked pretty well for a while. It would stop refreshing every once in a while, the server would need to be restarted sometimes because it ran out of memory, but it generally worked. It did start to break down however, once I wanted to add support for MUNI.

# MUNI

The San Francisco Bay Area has 27 (really!) transit operators. The list of modes of transit I listed at the top of the document wasn’t a joke, we do have busses, trains, trams, trolley busses, cable cars, and ferries, and multiple agencies that operate most of those different forms of transit. At first my system only reported on BART, the regional rapid transit system. Eventually though, I wanted to get arrival times for the other nearby transit provider.

The San Francisco Municipal Railway (MUNI) operates trolley busses, gas busses, light rail, and cable cars in San Francisco. Next to my apartment I had bus stops and light rail stops that I frequently used and wanted to get the status of. I thought I could adapt my Node.js screenshot tool to pull data on the MUNI stops near me too, and I was somewhat successful at first. Like BART, MUNI has a page where they report on the time to arrival of various lines at all of their stops across the city.

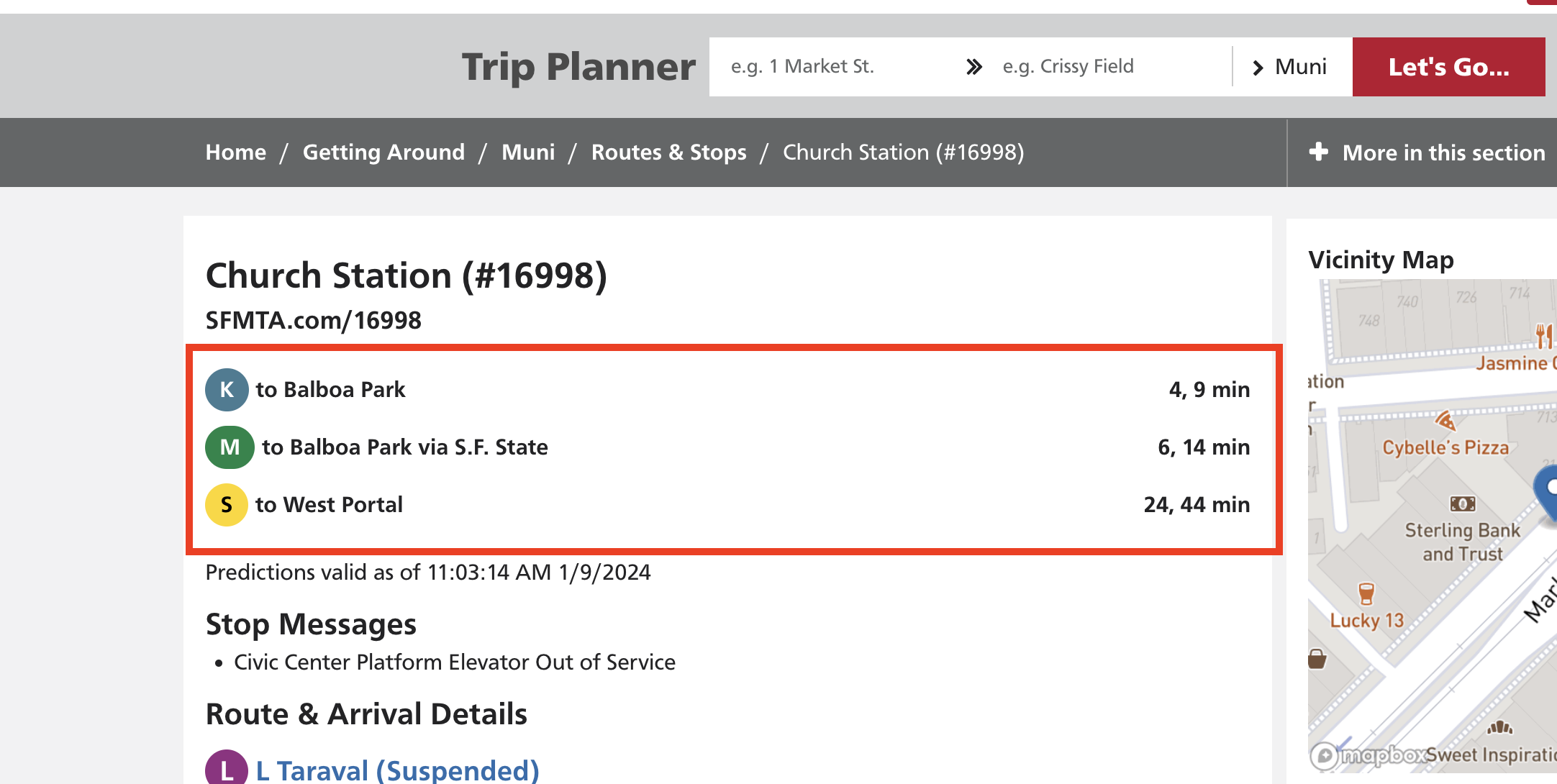

I figured it would be a straightforward endeavor to pull screenshots from the status pages of all the stops that I cared about, and assemble them into one view. I imagined it would look something like this:

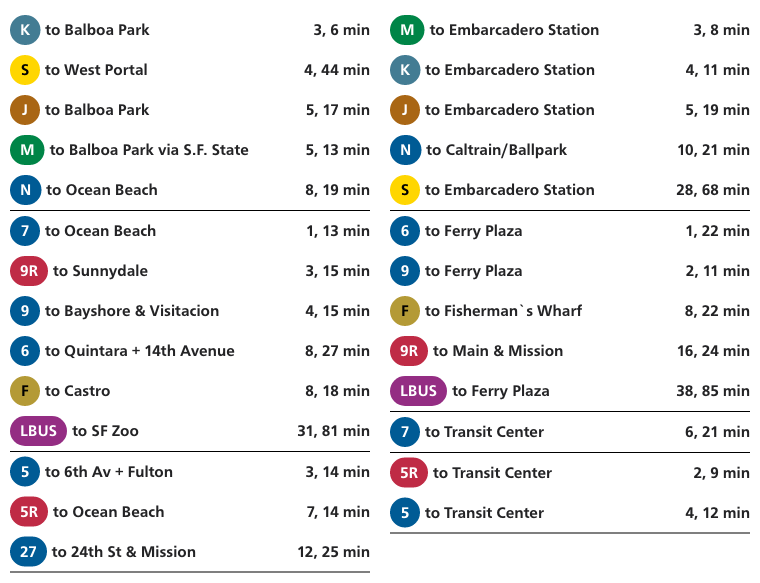

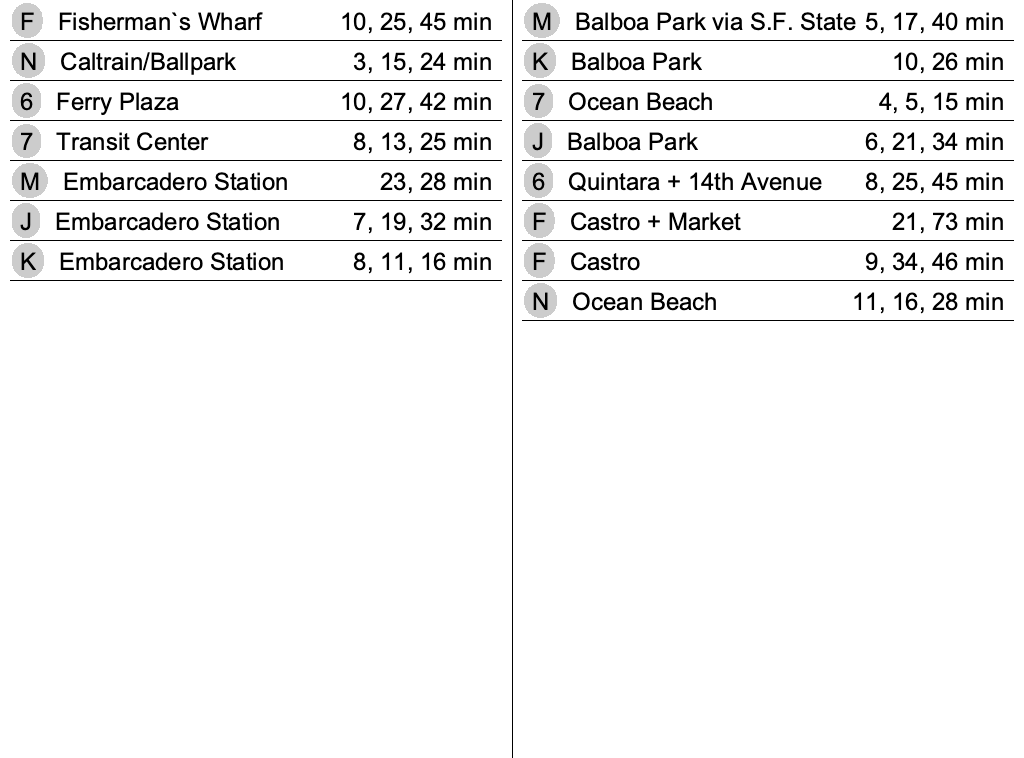

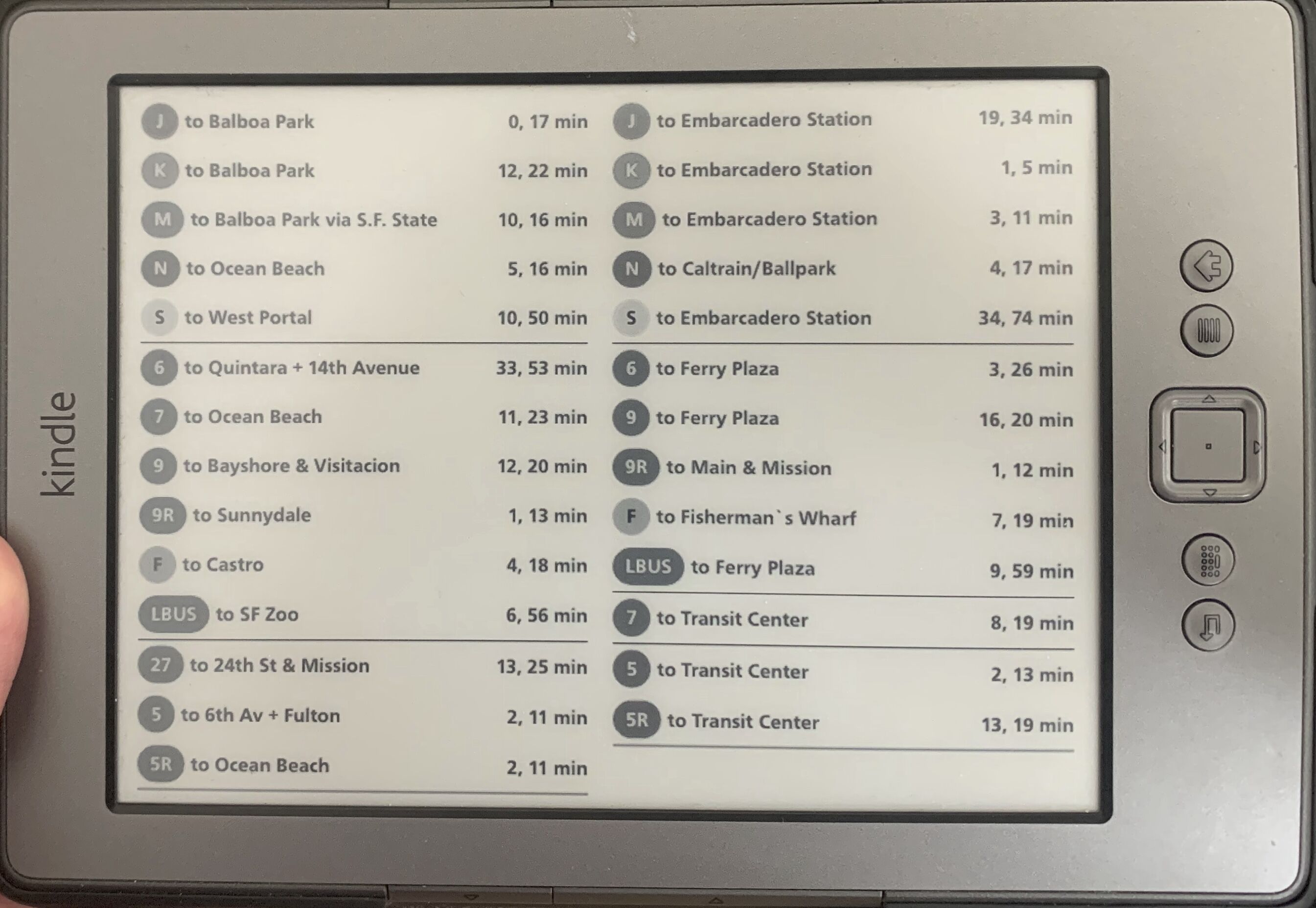

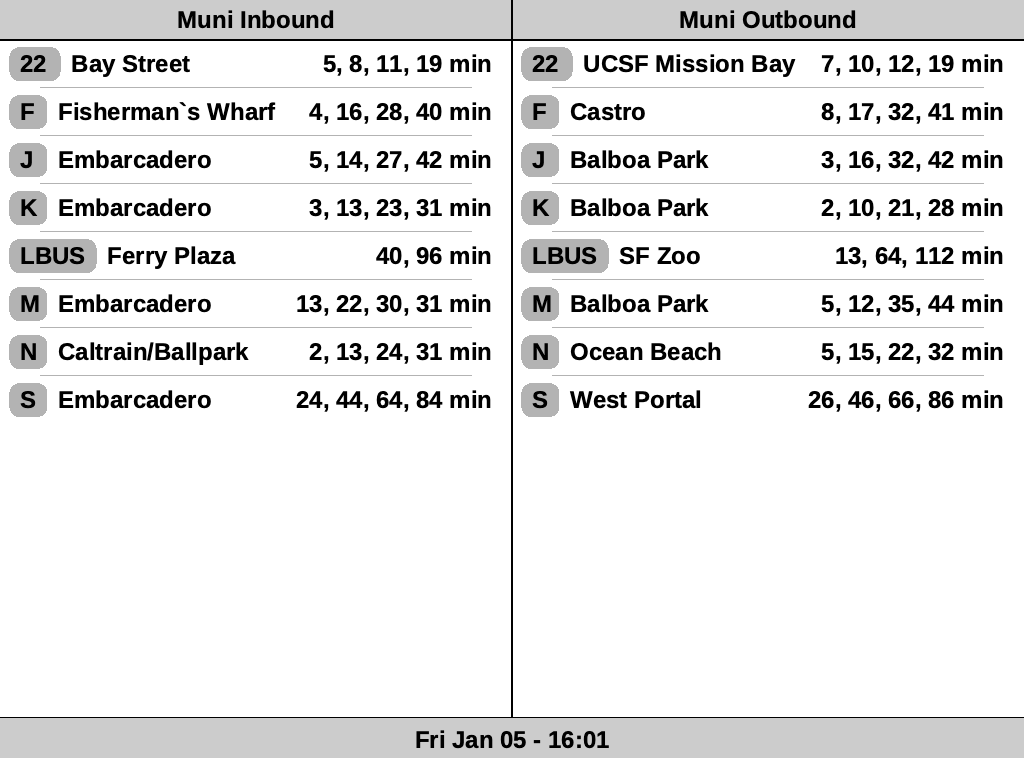

I was able to make this by assembling some screenshots by hand in Photopea. Now that I had a goal, I set out to it. I was able to make something that pulled in all the screenshots by maintaining multiple open browser tabs in Puppeteer, combining them with ImageMagick, and returning them to the Kindle. I was pretty happy with how it looked.

This worked for a short time but it quickly became problematic. For a hint as to why, look at the number of sections. Each of the seven sections on the image represents a browser tab that Puppeteer needs to keep open in order to fetch screenshots. Remember that the Node.js server was running on a Raspberry Pi, it didn’t have an excess of memory to operate in and Chrome is not known for its svelte-ness. In a related issue, MUNI was frequently returning HTTP 429 errors because I was fetching data from them too often. Apparently they have relatively low rate limits on these pages. These two issues combined to mean my BART & MUNI screens together were far less reliable than the BART one was on its own. Here’s a rare picture of both displays working in tandem.

I stuck it out for a while, restarting my HTTP server when the stop data became stale or health checks started failing. Eventually though, I grew tired of this and realized I’d need to rethink my approach if I wanted this system to work. An at-a-glance information system needs to be reliable, otherwise what’s the point? If I can’t rely on the data on the screen being accurate, it might as well not be there. So now we begin the most beautiful process in software - starting from scratch.

# Starting Over From Scratch - Architecture

I picked Node.js for the first server because I was using Puppeteer. I don’t particularly like Javascript, so given the ability to start from scratch I happily pivoted to Rust. We’ll be making a Rust HTTP server with Axum which serves PNG data. The public contract of the service will be nearly identical to the Node.js service, but the internals will be completely different.

We’re doing away with Puppeteer, so we need to figure out how we’re going to source the data for stops. I don’t particularly want to parse it out of the HTML pages that BART & MUNI provide, and thankfully there’s an API provided by 511, the Bay Area’s transit information system. Their Stop Monitoring API will give us exactly what we need - the estimated time of upcoming arrivals at any transit stop in the Bay Area.

Next, since we’re not relying on a browser engine to render the display, we will be using a 2D graphics library to render a PNG directly. This should have a much lower resource cost than using an entire browser engine, at the cost of some decreased flexibility. After some brief research, I settled on using the Rust bindings for the popular Skia graphics library. Skia is actually the graphics library underpinning Chrome, so we’ll be getting some of the same rendering technology with a lot less of the bloat from Puppeteer.

There are three main components of this project. First, we’ll have to find the upcoming transit arrival times. Next, we need to be able to take these arrival times and render them as an 8-bit PNG image. Finally (and probably the simplest) is an HTTP server which can return the generated PNG image data.

# Getting the Data

Let’s start by making sure we can pull the upcoming transit arrival times from 511.org and write them out to the console. We’ll start by making a new project with cargo new and defining our dependencies.

# In Cargo.toml
[dependencies]
# HTTP client crate
reqwest = { version = "0.11.18", default-features = false, features = [
    "json",

    # 511.org API responses are gzip-encoded and enabling this feature will
    # automatically decompress the payloads upon receiving them
    "gzip",

    # I used rustls because I was getting openssl linking errors on my Raspberry
    # Pi and I'm too lazy to figure out how to actually fix those, so I just
    # statically linked a TLS library. You do not have to use rustls, but if you
    # omit this line, you will need to enable some other TLS backend.
    "rustls-tls",
] }

# The de-facto standard serialization/deserialization crate for Rust, we'll
# use this to parse the 511.org response bodies.
serde = { version = "1.0.174", features = ["derive"] }

# Serde is a generic serialization framework, it doesn't know about any
# particular languages. The serde_json crate will allow us to parse JSON
# specifically.
serde_json = "1.0.103"

# Time handling library, will allow us to parse time data from strings in the
# 511.org response bodies.
chrono = { version = "0.4.26", features = ["serde"] }

# Async runtime that powers the concurrency systems our application will use -
# `full` feature required as library is shipped with only the minimum core
# functionality enabled and we need a little more than that.
tokio = { version = "1.29.1", features = ["full"] }

# Generic error reporting library
eyre = "0.6"

Now before we can get to coding, we need to get an API key from 511.org, and take a look at the API definition. The 511.org docs are either not super detailed, or quite detailed, depending on which docs you check. We’ll be using the “Real-Time stop monitoring” endpoint, which the not-super-detailed docs summarize like this:

Real-time Stop Monitoring API provides the expected arrival and departure times of vehicles at a stop in XML and JSON formats.

Endpoint: http://api.511.org/transit/StopMonitoring?api_key=[your_key]&agency=[operatorID]

Allowable parameters: api_key (mandatory), agency (mandatory), stopcode (optional) and format (optional)

The “agency” parameter refers to the code for which of the 27 different Bay Area transit agencies you’re requesting data for. You can only get data on one agency at a time. We’re going to be pulling data for the San Francisco Municipal Railway, which has the agency code SF (you can find the agency ID for other transit agencies by using the https://api.511.org/transit/gtfsoperators?api_key=[your_key] endpoint for a list of all agencies and their IDs). The StopMonitoring endpoint either returns upcoming arrival times for a single stop, or all stops of the given transit agency, which can be a lot of data! The 511.org APIs have a relatively low rate limit (60 requests per hour!) so if we expect to be able to show real-time status, we can’t fetch times one stop at a time. Unfortunately, as far as I can tell, there is no way to fetch data on multiple stops at once other than fetching data for all stops.

Ok, let’s open main.rs and grab all of the upcoming stop times for SF MUNI!

use reqwest::Client;

#[tokio::main]
async fn main() -> eyre::Result<()> {
    let client = Client::new();

    let response = client.get("http://api.511.org/transit/StopMonitoring?api_key=[your_key]&agency=SF").send().await?.text().await?;

    println!("{response}");

    Ok(())
}

Now this program is going to print a lot of text, let’s make sure we redirect that to a file so we can more easily explore it. This also may take a little bit, for me the HTTP request takes around 5 seconds to complete and returns about 27 MiB of data!

$ cargo run > stops.json

If we open the resulting JSON file and format it (my formatted JSON file is over 1 million lines long!) so that it’s a bit easier to read, we can start to understand the structure of the data that’s coming back. If we extract the outer structure of the object and the first element from the ~26k item-long list, we’ll see something like this:

{
  "ServiceDelivery": {
    "ResponseTimestamp": "2024-01-28T18:21:20Z",
    "ProducerRef": "SF",
    "Status": true,
    "StopMonitoringDelivery": {
      "version": "1.4",
      "ResponseTimestamp": "2024-01-28T18:21:20Z",
      "Status": true,
      "MonitoredStopVisit": [
        {
          "RecordedAtTime": "2024-01-28T18:21:12Z",
          "MonitoringRef": "15918",
          "MonitoredVehicleJourney": {
            "LineRef": "29",
            "DirectionRef": "IB",
            "FramedVehicleJourneyRef": {
              "DataFrameRef": "2024-01-28",
              "DatedVehicleJourneyRef": "11493704"
            },
            "PublishedLineName": "SUNSET",
            "OperatorRef": "SF",
            "OriginRef": "14648",
            "OriginName": "Fitzgerald Ave & Keith St",
            "DestinationRef": "13706",
            "DestinationName": "Bowley St & Lincoln Blvd",
            "Monitored": true,
            "InCongestion": null,
            "VehicleLocation": {
              "Longitude": "-122.4319",
              "Latitude": "37.721199"
            },
            "Bearing": "300.0000000000",
            "Occupancy": "seatsAvailable",
            "VehicleRef": "8739",
            "MonitoredCall": {
              "StopPointRef": "15918",
              "StopPointName": "Persia Ave & Paris St",
              "VehicleLocationAtStop": "",
              "VehicleAtStop": "true",
              "DestinationDisplay": "Baker Beach",
              "AimedArrivalTime": "2024-01-28T18:21:16Z",
              "ExpectedArrivalTime": "2024-01-28T18:21:21Z",
              "AimedDepartureTime": "2024-01-28T18:21:16Z",
              "ExpectedDepartureTime": null,
              "Distances": ""
            }
          }
        }
        // ~26k other JSON objects that look basically like that
      ]
    }
  }
}

Now obviously, there’s a whole lot of information in this response. Let’s try trimming this down to what we might need in order to render our display. Remember that we’re trying to display the upcoming arrival times for a few lines at a few known stops. We’ll filter out all of the fields that aren’t necessary for this purpose so we can focus on what counts.

{
  "ServiceDelivery": {
    "StopMonitoringDelivery": {
      "MonitoredStopVisit": [
        {
          "MonitoredVehicleJourney": {
            // This is the ID of the line, in this case, we're looking at the #29 bus
            "LineRef": "29",

            // The "direction" of the bus. SF MUNI vehicles report directions
            // relative to downtown San Francisco, either "inbound" (IB) or
            // "outbound" (OB). It's a bit strange for this particular line,
            // since it goes _nowhere near downtown SF_ :/ but that's the system
            // we have. This bus is heading inbound, which means it's going West
            // from Bayview, then cutting North through the Sunset towards Baker
            // Beach.
            "DirectionRef": "IB",

            // The name of the final stop on this line in the direction that
            // this bus is headed.
            "DestinationName": "Bowley St & Lincoln Blvd",
            "MonitoredCall": {
              // This is the ID of the stop of this estimated arrival. This
              // particular stop is at Persia Ave & Paris St. in the Excelsior
              // neighborhood of SF. We will not have to map stop IDs to
              // locations for this project, but we will need to map locations
              // to Stop IDs.
              "StopPointRef": "15918",

              // This is the time that the transit agency expects this
              // particular #29 bus to reach the Persia & Paris stop.
              "ExpectedArrivalTime": "2024-01-28T18:21:21Z",

              // This is a somewhat friendlier name for the destination. We'll
              // use this but fall back to the longer one if this is
              // unavailable.
              "DestinationDisplay": "Baker Beach"
            }
          }
        }
      ]
    }
  }
}

Basically all of the other fields in this response are irrelevant for our purposes. There’s probably some future feature expansions that could be powered by the other data, but for now we’re going to focus on these.

Now that we have a bit of an understanding on how the data are structured, let’s filter our data by the stops that we actually care about. This step is going to vary a bit depending on which transit operator you’re using. For SF MUNI, the stop IDs are relatively easy to figure out. The SF MUNI website has realtime stop monitoring pages, which show you the ID of the stop in question. In the case of that link, it’s the stop that we just looked at in the JSON snippet above, #15918 at Persia & Paris. Use the MUNI website to find the IDs of the stops close to you, paying attention to the fact that MUNI stops correspond with only one direction of transit. This means that there are two “Persia Ave & Paris St” stops for the #29 bus, #15918 for inbound busses, and #15919 for outbound busses.

Now that our Rust program is going to have to start caring about the structure of the returned JSON data, we can’t just pass it around like text, we actually need to parse it.

use reqwest::Client;
use serde::Deserialize;

#[derive(Deserialize, Debug)]
#[serde(rename_all = "PascalCase")]
struct StopMonitoringResponse {
    service_delivery: ServiceDelivery,
}

#[derive(Deserialize, Debug)]
#[serde(rename_all = "PascalCase")]
struct ServiceDelivery {
    stop_monitoring_delivery: StopMonitoringDelivery,
}

#[derive(Deserialize, Debug)]
#[serde(rename_all = "PascalCase")]
struct StopMonitoringDelivery {
    monitored_stop_visit: Vec<MonitoredStopVisit>,
}

#[derive(Deserialize, Debug)]
#[serde(rename_all = "PascalCase")]
struct MonitoredStopVisit {
    monitored_vehicle_journey: MonitoredVehicleJourney,
}

#[derive(Deserialize, Debug)]
#[serde(rename_all = "PascalCase")]
struct MonitoredVehicleJourney {
    line_ref: Option<String>,
    direction_ref: Option<String>,
    destination_name: Option<String>,
    monitored_call: MonitoredCall,
}

#[derive(Deserialize, Debug)]
#[serde(rename_all = "PascalCase")]
struct MonitoredCall {
    expected_arrival_time: Option<String>,
    stop_point_ref: String,
    destination_display: Option<String>,
}

#[tokio::main]
async fn main() -> eyre::Result<()> {
    let client = Client::new();

    let response: StopMonitoringResponse = client.get("http://api.511.org/transit/StopMonitoring?api_key=[your_key]&agency=SF&stopCode=17073,18059").send().await?.json().await?;

    let mut stops_i_care_about = Vec::new();

    for stop_visit in response
        .service_delivery
        .stop_monitoring_delivery
        .monitored_stop_visit
    {
        let stop = &stop_visit
            .monitored_vehicle_journey
            .monitored_call
            .stop_point_ref;
        if stop == "15918" || stop == "15919" {
            stops_i_care_about.push(stop_visit.monitored_vehicle_journey);
        }
    }

    println!("{stops_i_care_about:#?}");

    Ok(())
}

This should show us only the upcoming arrival times for the busses at both directions of the Persia & Paris stop. Let’s try running it:

$ cargo run > stops.txt
Error: error decoding response body: expected value at line 1 column 1

Caused by:
    expected value at line 1 column 1

Location:
    src/main.rs:48:44

Uh oh! For some reason, our JSON parser didn’t like the value returned by the 511.org server. Was it not valid JSON? It certainly looked like valid JSON when we looked at it. It turns out that 511.org returns a UTF-8 Byte order mark as the first three bytes of its API response, something that our JSON parser is not expecting. We’ll need to remove those bytes before feeding the response to our JSON parser.

...

#[tokio::main]
async fn main() -> eyre::Result<()> {
    let client = Client::new();

    // Using the `.text()` function parses the response as UTF-8 and strips the
    // Byte order mark
    let response_txt = client.get("http://api.511.org/transit/StopMonitoring?api_key=[your_key]&agency=SF").send().await?.text().await?;

    let response: StopMonitoringResponse = serde_json::from_str(&response_txt)?;

    let mut stops_i_care_about = Vec::new();

    for stop_visit in response
        .service_delivery
        .stop_monitoring_delivery
        .monitored_stop_visit
    {
        let stop = &stop_visit
            .monitored_vehicle_journey
            .monitored_call
            .stop_point_ref;
        if stop == "15918" || stop == "15919" {
            stops_i_care_about.push(stop_visit.monitored_vehicle_journey);
        }
    }

    println!("{stops_i_care_about:#?}");

    Ok(())
}

Now let’s try running this one more time.

$ cargo run > stops.txt

We should get an output file that looks something like this:

[
    MonitoredVehicleJourney {
        line_ref: Some(
            "29",
        ),
        direction_ref: Some(
            "IB",
        ),
        destination_name: Some(
            "Bowley St & Lincoln Blvd",
        ),
        monitored_call: MonitoredCall {
            expected_arrival_time: Some(
                "2024-01-28T19:10:40Z",
            ),
            stop_point_ref: "15918",
            destination_display: "Baker Beach"
        },
    },
    MonitoredVehicleJourney {
        line_ref: Some(
            "29",
        ),
        direction_ref: Some(
            "OB",
        ),
        destination_name: Some(
            "Fitzgerald Ave & Keith St",
        ),
        monitored_call: MonitoredCall {
            expected_arrival_time: Some(
                "2024-01-28T19:12:56Z",
            ),
            stop_point_ref: "15919",
            destination_display: "Presidio"
        },
    },
...

At the time I ran this, I got about 20 upcoming arrivals back. This is going to be much more manageable than the 26k arrivals that we were initially looking at.

Let’s see if we can print out the arrivals in order of soonest to latest for each direction.

use std::collections::HashMap;
...

#[tokio::main]
async fn main() -> eyre::Result<()> {
    ...

    let mut lines_and_directions_to_arrivals = HashMap::new();
    // This will organize the data into groups based on the line ID and the
    // direction that the bus is traveling when it reaches the stop
    for arrival in stops_i_care_about {
        if let Some(line) = arrival.line_ref.clone() {
            if let Some(direction) = arrival.direction_ref.clone() {
                lines_and_directions_to_arrivals
                    .entry((line, direction))
                    .or_insert(Vec::new())
                    .push(arrival);
            }
        }
    }

    // This will sort the list of arrivals for each stop by the (lexographic)
    // order of the expected arrival time of each bus.
    for stops in lines_and_directions_to_arrivals.values_mut() {
        stops.sort_by_key(|s| s.monitored_call.expected_arrival_time.clone());
    }

    for ((line, direction), arrivals) in lines_and_directions_to_arrivals {
        println!("=======");
        println!("{line}: {direction}");
        for arrival in arrivals {
            if let Some(time) = arrival.monitored_call.expected_arrival_time {
                println!("- {}", time);
            }
        }
    }

    Ok(())
}

Running the code in its current form should give us something that’s (nearly) usable!

$ cargo run
=======
29: OB
- 2024-01-28T19:31:55Z
- 2024-01-28T19:44:42Z
- 2024-01-28T19:52:49Z
- 2024-01-28T20:04:48Z
- 2024-01-28T20:16:35Z
- 2024-01-28T20:28:35Z
- 2024-01-28T20:40:35Z
- 2024-01-28T20:52:35Z
- 2024-01-28T21:04:35Z
=======
29: IB
- 2024-01-28T19:20:11Z
- 2024-01-28T19:32:42Z
- 2024-01-28T19:43:15Z
- 2024-01-28T19:55:15Z
- 2024-01-28T20:07:15Z
- 2024-01-28T20:19:15Z
- 2024-01-28T20:31:15Z
- 2024-01-28T20:43:15Z
- 2024-01-28T21:07:15Z
- 2024-01-28T21:19:15Z
- 2024-01-28T21:31:15Z

This technically shows us upcoming bus times, but it’s not especially helpful. Let’s turn those UTC timestamps into “how many minutes away is this bus.”

use chrono::prelude::*;

...

#[tokio::main]
async fn main() -> eyre::Result<()> {
    ...

    for ((line, direction), arrivals) in lines_and_directions_to_arrivals {
        println!("=======");
        println!("{line}: {direction}");
        for arrival in arrivals {
            if let Some(time) = arrival.monitored_call.expected_arrival_time {
                let time = time.parse::<DateTime<Utc>>()?;

                if time < Utc::now() {
                    continue;
                }

                println!("- {}min", (time - Utc::now()).num_minutes());
            }
        }
    }

    Ok(())
}

Running this gives us something pretty close to our eventual goal.

$ cargo run
=======
29: OB
- 13min
- 27min
- 42min
- 57min
- 72min
- 87min
- 102min
- 117min
=======
29: IB
- 18min
- 30min
- 59min
- 74min
- 89min
- 104min
- 124min

Now that we have these data, let’s take a look at how we can put them into a PNG!

# Building a PNG with Skia

Now, I’d never used Skia before, and I’d certainly never used the Skia Rust bindings before. Before we try to display bus times, let’s make sure we understand how to set up our PNG rendering pipeline. When exploring a new problem space, “Hello World” is usually a good first program to build. Let’s make a PNG8 image that’s 1024x758 (the size of the Kindle screen) and make it display “Hello World” in the middle of the image.

We’ll need to start by including skia-safe in our dependencies.

# in Cargo.toml
skia-safe = "0.70"

Now, let’s make a new binary (for the time being) that we’ll use for experimenting with Image files. I’ll get us started with my (heavily annotated) “Hello World” Skia program.

use std::{fs::File, io::Write};

use eyre::{ensure, eyre};
use skia_safe::{
    AlphaType, Bitmap, Canvas, Color4f, ColorType, Font, FontMgr, FontStyle, ImageInfo, Paint,
};

fn main() -> eyre::Result<()> {
    // A skia "bitmap" is used as an in-memory region to store all of the pixels
    // of our image. It is initially an empty 0x0 memory region.
    let mut bitmap = Bitmap::new();

    // The `ensure` macro from eyre will exit the function with an Err if this
    // `set_info` call does not return `true`.
    ensure!(
        // This `set_info` call sets up the bitmap for the dimensions and color
        // depth that we expect it to have.
        bitmap.set_info(
            &ImageInfo::new(
                // This is the width and height of the image
                (1024, 758),
                // Since color depth affects per-pixel storage, we need to set
                // this ahead of time so that Skia knows how much space (one
                // byte) to allocate for each pixel in our image.
                ColorType::Gray8,
                // Our image will have no alpha channel
                AlphaType::Unknown,
                // The colorspace of an 8-bit PNG doesn't matter that much (to
                // me at least)
                None
            ),
            None
        )
    );
    // We need to allocate the required space for our image's pixels after
    // calling `set_info`.
    bitmap.alloc_pixels();

    // A skia "canvas" is the drawing context. It is the thing that knows how to
    // draw text, 2D shapes, and everything else interesting that we care about
    // drawing. We pass our bitmap to the constructor as this is where all of
    // our image data will end up.
    let canvas = Canvas::from_bitmap(&bitmap, None).ok_or(eyre!("skia canvas"))?;

    // This call blanks the image with a fully white background. All the colors
    // we'll be dealing with are represented as 32-bit floats between 0 and 1.
    canvas.clear(Color4f::new(1.0, 1.0, 1.0, 1.0));

    // In order to draw text, we need to load a "font," which is a combination
    // of a "typeface," and a size. We'll load the "Arial" typeface and create a
    // 48-point font with it.
    let font_manager = FontMgr::new();
    let typeface = font_manager
        .match_family_style("Arial", FontStyle::normal())
        .unwrap();
    let font = Font::new(typeface, 48.0);

    // Most of the drawing commands we'll give Skia will require us to use a
    // "paint," something that tells Skia what color something should be. This
    // black paint will be used as the color of our "Hello World" text.
    let black_paint = Paint::new(Color4f::new(0.0, 0.0, 0.0, 1.0), None);

    canvas.draw_str("Hello World!", (100.0, 100.0), &font, &black_paint);

    // After drawing our image, we need to save it out to the filesystem so that
    // we can view it. First we must convert our raw bitmap into a PNG image.
    let png = bitmap
        .as_image()
        .encode(None, skia_safe::EncodedImageFormat::PNG, None)
        .ok_or(eyre!("skia image encode"))?;

    // These are the raw bytes of our PNG image. In this example, we're saving
    // the bytes to the filesystem, but in the future these bytes will be
    // streamed over an HTTP endpoint to our Kindle.
    let png_bytes = png.as_bytes();

    let mut f = File::create("out.png")?;
    f.write_all(png_bytes)?;

    Ok(())
}

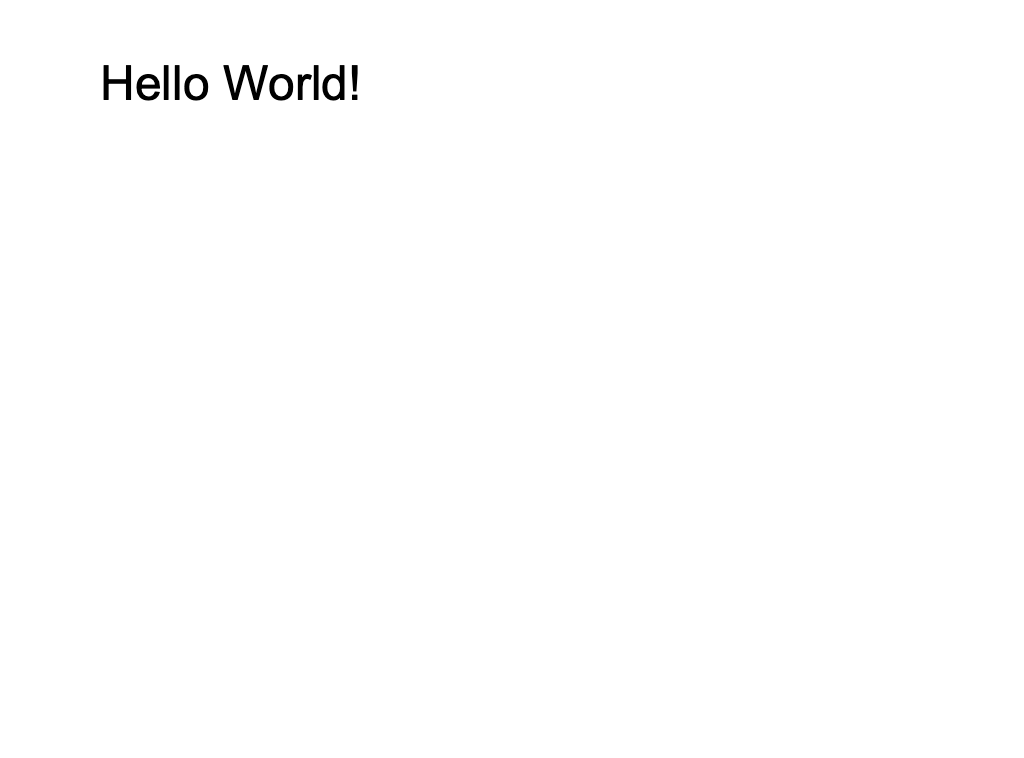

If we run this binary and open the generated out.png file, we should see our message!

Now that we can render some text, let’s try to render some bus times instead. We’ll aim to create a table-like display with a column for inbound vehicles and another for outbound vehicles. Each row in the table will represent a line in a particular direction. I’m going to make some fake times, in the interest of fast iteration time (remember it’s rather slow to fetch data from the 511.org API, and there’s also a low rate limit).

fn main() -> eyre::Result<()> {
    ...

    // These contain line IDs, Destination names, and lists of times of upcoming
    // buses/trains.
    let inbound_bus_times: &[(&str, &str, &[&str])] = &[
        ("22", "Marina", &["5min", "7min"]),
        ("K", "Embarcadero", &["3min", "10min"]),
        ("J", "Downtown", &["0min", "8min", "13min"]),
    ];
    let outbound_bus_times: &[(&str, &str, &[&str])] = &[
        ("22", "UCSF", &["3min", "9min"]),
        ("K", "Balboa Park", &["12min", "20min"]),
        ("J", "Balboa Park", &["1min", "127min", "128min"]),
    ];

    // Since we have two sets of times to render, we'll create a lambda that
    // allows us to run the same code against two different sets of inputs - the
    // two different sets of times, and the left and right column of the image.
    let draw_times = |times: &[(&str, &str, &[&str])], x1: f32, x2: f32| {
        let mut y = 30.0;
        for (line_id, destination, times) in times {
            canvas.draw_str(line_id, (x1 + 20.0, y), &font, &black_paint);

            canvas.draw_str(destination, (x1 + 60.0, y), &font, &black_paint);

            let mut times_str = String::new();
            for time in *times {
                times_str.push_str(time);
                times_str.push_str(", ");
            }
            times_str.pop();
            times_str.pop();

            canvas.draw_str(times_str, (x1 + 260.0, y), &font, &black_paint);
            canvas.draw_line((x1 + 10.0, y + 10.0), (x2 - 10.0, y + 10.0), &black_paint);
            y += 40.0;
        }
    };

    let width = 1024.0;
    let height = 758.0;
    let midpoint = 512.0;

    draw_times(inbound_bus_times, 0.0, midpoint);
    canvas.draw_line((midpoint, 0.0), (midpoint, height), &black_paint);
    draw_times(outbound_bus_times, midpoint, width);

    ...
}

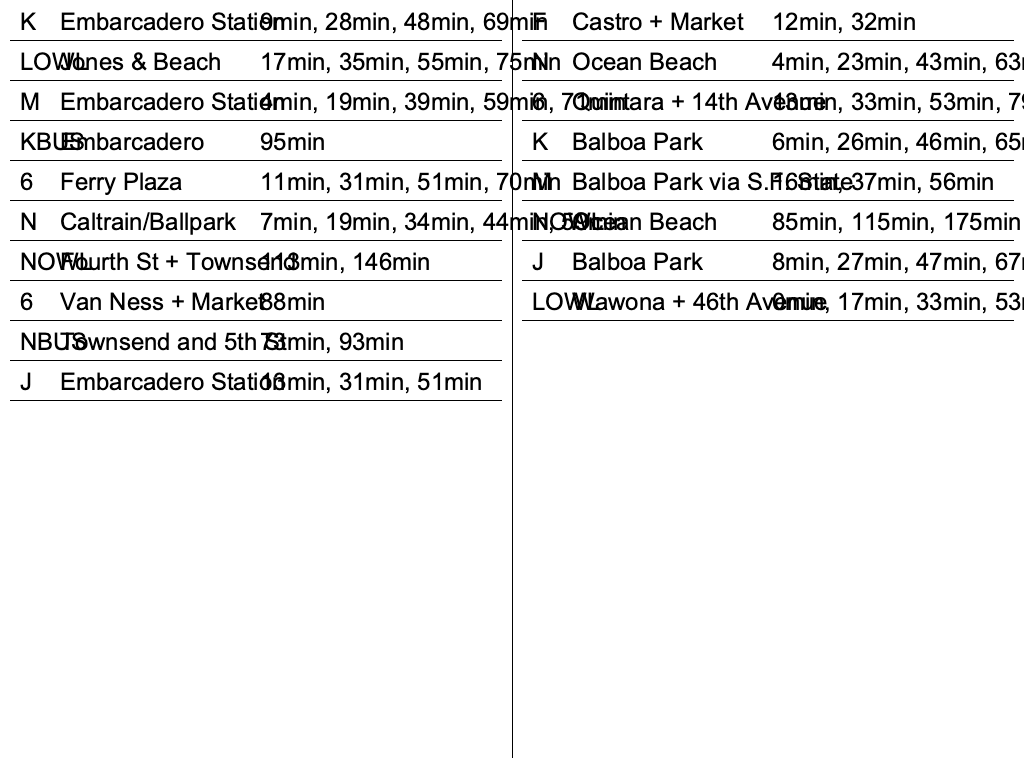

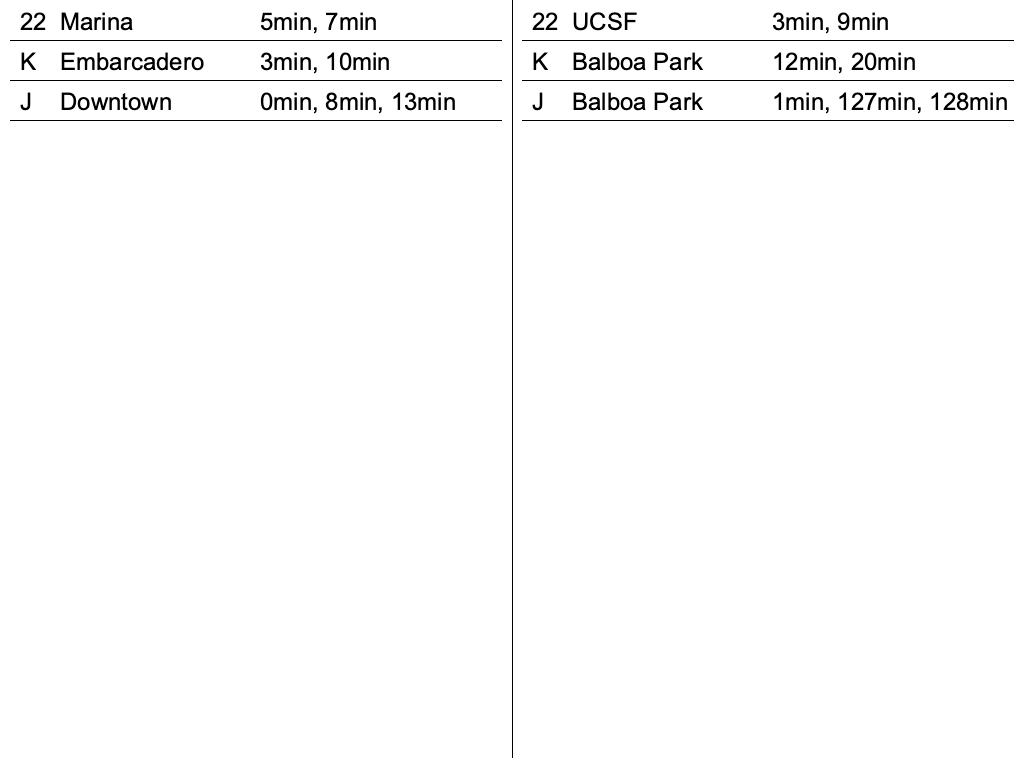

There’s not really a whole lot that’s new to us in this code example except for the draw_line function. We’re using it to put a line underneath each bus/train’s next arrival times, and in the middle of the image to divide the two columns. It’s all just loops and setting text on the image. Running this program, we get a functional (if quite stale) display of times.

Now that we’re displaying an image, let’s see if we can connect our API fetching code to the PNG generation code.

# Building a PNG backed by data

In order to accomplish this, we’re going to need to change some of the data structures we’re using to hold the journeys to more closely align with what our image generation code needs. Remember that the image generation code is expecting data broken down by direction, line ID, line destination, and then times. I’m also going to switch the data from the sleepy Prussia & Paris stop to a few stops located at Van Ness and Market, one of MUNI’s busiest interconnection spots (anecdotally). Let’s start with these changes before we add in the image generation.

#[tokio::main]
async fn main() -> eyre::Result<()> {
    let client = Client::new();

    let response_txt = client.get("http://api.511.org/transit/StopMonitoring?api_key=[your_key]&agency=SF").send().await?.text().await?;

    let response: StopMonitoringResponse = serde_json::from_str(&response_txt)?;

    let mut journeys_i_care_about = Vec::new();

    for stop_visit in response
        .service_delivery
        .stop_monitoring_delivery
        .monitored_stop_visit
    {
        let stop = &stop_visit
            .monitored_vehicle_journey
            .monitored_call
            .stop_point_ref;
        // These four stop IDs represent IB/OB traffic at the Van Ness Metro
        // stop, and East/West traffic on Market St at Van Ness.
        if ["15419", "16996", "15692", "15696"].contains(&stop.as_ref()) {
            journeys_i_care_about.push(stop_visit.monitored_vehicle_journey);
        }
    }

    // The name is a little unwieldy, but this layered HashMap holds journeys
    // organized first by direction (IB/OB), then a combination of line ID &
    // destination name.
    let mut directions_to_lines_destinations_to_journeys = HashMap::new();
    for journey in journeys_i_care_about {
        let Some(line) = journey.line_ref.clone() else {
            continue;
        };
        let Some(direction) = journey.direction_ref.clone() else {
            continue;
        };
        let Some(destination) = journey.monitored_call.destination_display.clone() else {
            continue;
        };

        directions_to_lines_destinations_to_journeys
            .entry(direction)
            .or_insert(HashMap::new())
            .entry((line, destination))
            .or_insert(Vec::new())
            .push(journey);
    }

    for lines_destinations_to_journeys in directions_to_lines_destinations_to_journeys.values_mut()
    {
        for journeys in lines_destinations_to_journeys.values_mut() {
            journeys.sort_by_key(|j| j.monitored_call.expected_arrival_time.clone());
        }
    }

    // We'll worry about this function later
    draw_image(directions_to_lines_destinations_to_journeys)?;

    Ok(())
}

Now that we have the data prepped, let’s make the changes to our image generation to support live data.

fn draw_image(
    directions_to_lines_destinations_to_journeys: HashMap<
        String,
        HashMap<(String, String), Vec<MonitoredVehicleJourney>>,
    >,
) -> eyre::Result<()> {
    let mut bitmap = Bitmap::new();
    ensure!(bitmap.set_info(
        &ImageInfo::new((1024, 758), ColorType::Gray8, AlphaType::Unknown, None),
        None
    ));
    bitmap.alloc_pixels();

    let canvas = Canvas::from_bitmap(&bitmap, None).ok_or(eyre!("skia canvas"))?;

    canvas.clear(Color4f::new(1.0, 1.0, 1.0, 1.0));

    let font_manager = FontMgr::new();
    let typeface = font_manager
        .match_family_style("Arial", FontStyle::normal())
        .unwrap();
    let font = Font::new(typeface, 24.0);

    let black_paint = Paint::new(Color4f::new(0.0, 0.0, 0.0, 1.0), None);

    let inbound_journeys = &directions_to_lines_destinations_to_journeys["IB"];
    let outbound_journeys = &directions_to_lines_destinations_to_journeys["OB"];

    let draw_times = |lines_destinations_to_journeys: &HashMap<
        (String, String),
        Vec<MonitoredVehicleJourney>,
    >,
                      x1: f32,
                      x2: f32| {
        let mut y = 30.0;
        for ((line_id, destination), journeys) in lines_destinations_to_journeys {
            canvas.draw_str(line_id, (x1 + 20.0, y), &font, &black_paint);

            canvas.draw_str(destination, (x1 + 60.0, y), &font, &black_paint);

            let mut times_str = String::new();
            for journey in journeys {
                let Some(time_str) = &journey.monitored_call.expected_arrival_time else {
                    continue;
                };

                let Ok(time) = time_str.parse::<DateTime<Utc>>() else {
                    continue;
                };

                if time < Utc::now() {
                    continue;
                }

                let time = format!("{}min, ", (time - Utc::now()).num_minutes());

                times_str.push_str(&time);
            }
            times_str.pop();
            times_str.pop();

            canvas.draw_str(times_str, (x1 + 260.0, y), &font, &black_paint);
            canvas.draw_line((x1 + 10.0, y + 10.0), (x2 - 10.0, y + 10.0), &black_paint);
            y += 40.0;
        }
    };

    let width = 1024.0;
    let height = 758.0;
    let midpoint = 512.0;

    draw_times(inbound_journeys, 0.0, midpoint);
    canvas.draw_line((midpoint, 0.0), (midpoint, height), &black_paint);
    draw_times(outbound_journeys, midpoint, width);

    let png = bitmap
        .as_image()
        .encode(None, skia_safe::EncodedImageFormat::PNG, None)
        .ok_or(eyre!("skia image encode"))?;
    let png_bytes = png.as_bytes();

    let mut f = File::create("out.png")?;
    f.write_all(png_bytes)?;

    Ok(())
}

There’s a little bit more logic in there now, but it’s basically the same as the previous standalone image generator. Let’s run our program and get a beautiful, accurate timetable of the Van Ness busses and trams!

Uh oh. Now, absolutely nobody in the world could have predicted this, but our real-world data were more complicated than the test data that I thought up while I was heavily biased towards “I don’t want to type very much.” The main issue here is that we have a static layout for each of our rows, despite the fact that there’s a slightly different amount of data to display in each of the rows. We’re going to have to do a little bit of visual design, but before we do let’s add a little short-circuit to the API-calling code so that we can iterate on this quickly and not get rate-limited.

#[tokio::main]
async fn main() -> eyre::Result<()> {
    let response_txt = match std::fs::read_to_string("data.json") {
        Ok(x) => x,
        Err(_) => {
            let client = Client::new();

            let data = client.get("http://api.511.org/transit/StopMonitoring?api_key=[your_key]&agency=SF").send().await?.text().await?;
            std::fs::write("data.json", &data)?;
            data
        }
    };

    let response: StopMonitoringResponse = serde_json::from_str(&response_txt)?;
    ...

Now then, here’s how we’re going to update the drawing:

• Right-justify the times of upcoming vehicles so that there’s no wasted space at the end of the timetables
• Remove the “min” between each time on the table, adding it only at the end of the list. This maximizes useful information and minimizes cruft
• Only display the next 3 vehicles, we don’t have space for all of them
• Scoot the destination names a bit to the right to compensate for the longer bus names

Let’s start with these three changes and see how far that gets us. The draw_times lambda in draw_image is really the only thing that needs to change.

let draw_times = |lines_destinations_to_journeys: &HashMap<
    (String, String),
    Vec<MonitoredVehicleJourney>,
>,
                    x1: f32,
                    x2: f32| {
    let mut y = 30.0;
    for ((line_id, destination), journeys) in lines_destinations_to_journeys {
        canvas.draw_str(line_id, (x1 + 20.0, y), &font, &black_paint);

        canvas.draw_str(destination, (x1 + 90.0, y), &font, &black_paint);

        let mut times_str = String::new();
        for journey in &journeys[..journeys.len().min(3)] {
            let Some(time_str) = &journey.monitored_call.expected_arrival_time else {
                continue;
            };

            let Ok(time) = time_str.parse::<DateTime<Utc>>() else {
                continue;
            };

            if time < Utc::now() {
                continue;
            }

            let time = format!("{}, ", (time - Utc::now()).num_minutes());

            times_str.push_str(&time);
        }
        times_str.pop();
        times_str.pop();
        times_str.push_str(" min");

        canvas.draw_str_align(times_str, (x2 - 20.0, y), &font, &black_paint, Align::Right);
        canvas.draw_line((x1 + 10.0, y + 10.0), (x2 - 10.0, y + 10.0), &black_paint);
        y += 40.0;
    }
};

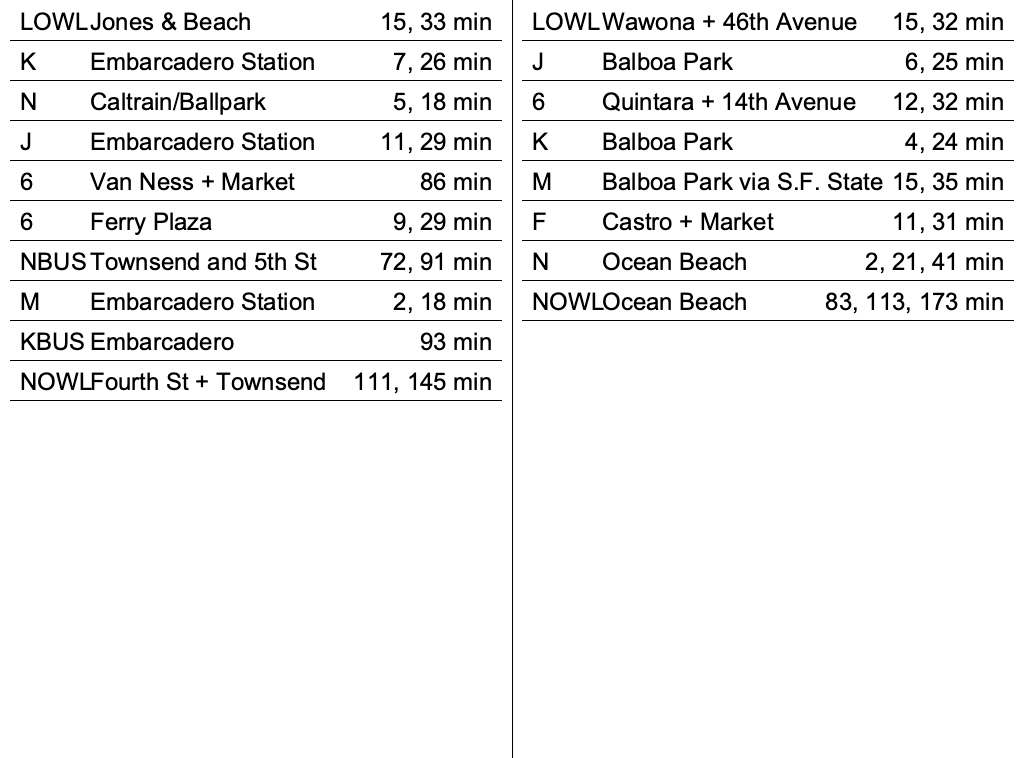

After this, we can re-run the program and get a much more legible (if quite bland and odd) timetable.

This isn’t a great looking timetable, and it’s not what the finished product is going to look like, but it is what we’re going to start out with. Now that we can generate a PNG with real image data, let’s move on to serving it via HTTP.

# Serving the PNG with Axum

Now that we can generate a PNG, let’s build a server that can feed our image file to the Kindle. We’ll need to add Axum to our dependency list.

# In Cargo.toml
axum = "0.7"

And thankfully, this is about the easiest part of the project to build. Let’s start by writing an HTTP server with a handler for our PNG file, and make that handler return an empty body.

use axum::{
    body::{Body, Bytes},
    http::StatusCode,
    response::Response,
    routing::get,
    Router,
};
use tokio::net::TcpListener;

#[tokio::main]
async fn main() -> eyre::Result<()> {
    let app = Router::new().route("/stops.png", get(handle_stops_png));

    let listener = TcpListener::bind(&"0.0.0.0:3001").await?;

    eprintln!("Visit http://localhost:3001/stops.png");

    axum::serve(listener, app.into_make_service()).await?;

    Ok(())
}

async fn handle_stops_png() -> Response<Body> {
    Response::builder()
        .status(StatusCode::OK)
        .header("Content-Type", "image/png")
        .body(Body::from(Bytes::from(&[])))
        .unwrap()
}

Running this server with cargo run and visiting http://localhost:3001/stops.png in your browser won’t return any content, but it should respond with a HTTP 200. Now let’s connect our HTTP server with the image generation code. We need to make some subtle changes to that code so that image data gets passed around in memory instead of being written to a file.

...

async fn handle_stops_png() -> Response<Body> {
    Response::builder()
        .status(StatusCode::OK)
        .header("Content-Type", "image/png")
        .body(Body::from(Bytes::from(get_image().await.unwrap())))
        .unwrap()
}

// This used to be the `main` function when the program was just saving images
// to disk, notice that the return type has changed
async fn get_image() -> eyre::Result<Vec<u8>> {
    let response_txt = match std::fs::read_to_string("data.json") {
    ...

    let png_bytes = draw_image(directions_to_lines_destinations_to_journeys)?;

    Ok(png_bytes)
}

// Notice that the return type of this function has changed
fn draw_image(
    directions_to_lines_destinations_to_journeys: HashMap<
        String,
        HashMap<(String, String), Vec<MonitoredVehicleJourney>>,
    >,
) -> eyre::Result<Vec<u8>> {
    ...

    let png_bytes = png.as_bytes();

    // Recall that previously these bytes were written to a file instead of
    // being returned from the function.
    Ok(png_bytes.to_owned())
}

If we run this server and visit the image page in our browser, we should see our beautiful schedule!

If we try to display this on our Kindle by fetching it via wget and displaying it via eips, we’ll be disappointed to see that the image is rotated and cut off. Of course the Kindle is designed to be held in portrait orientation, so we need to manually rotate our image to landscape orientation if we want it to display correctly. This can be done by applying a rotation matrix before we begin drawing.

let mut bitmap = Bitmap::new();
ensure!(bitmap.set_info(
    // Notice that the dimensions we're using for width and height have been flipped here
    &ImageInfo::new((758, 1024), ColorType::Gray8, AlphaType::Unknown, None),
    None
));
bitmap.alloc_pixels();

let canvas = Canvas::from_bitmap(&bitmap, None).ok_or(eyre!("skia canvas"))?;
// The point we're rotating around is (width/2, width/2)
canvas.rotate(90.0, Some(Point::new(379.0, 379.0)));

This should return a rotated image that displays correctly on the Kindle. Images in the rest of this post will be displayed in landscape orientation for ease of viewing.

Now that we have something that works end-to-end, let’s improve the layout of our schedule a bit.

# Refining the UI

Now our schedule may be, strictly speaking, usable. But it’s not what I’d call beautiful. Despite our spacing efforts, text can still overlay each other, and the most important things don’t look the most important. Let’s start by doing something that sounds simple (but actually isn’t). Let’s put the Line ID in a nice little bubble so that it stands out.

We’re going to do this by first making a helper function that can tell us how big a given piece of text is expected to be, based on the font and the paint that we’re going to use to render it.

use skia_safe::{
    utils::text_utils::Align, AlphaType, Bitmap, Canvas, Color4f, ColorType, Font, FontMgr,
    FontStyle, ImageInfo, Paint, Rect,
};

...

fn text_bounds(text: &str, (x, y): (f32, f32), font: &Font, paint: &Paint) -> Rect {
    let (text_width, text_measurements) = font.measure_str(text, Some(paint));
    // It took me a few tries to figure out exactly how to make use of the
    // `measure_str` method, but this gives us a bounding box on the exact size
    // of whatever text we input.
    Rect::new(x, y + text_measurements.top, x + text_width, y)
}

Next, we’ll use this method to draw a rounded rectangle, slightly larger than the line ID.

...
fn draw_image(
    directions_to_lines_destinations_to_journeys: HashMap<
        String,
        HashMap<(String, String), Vec<MonitoredVehicleJourney>>,
    >,
) -> eyre::Result<Vec<u8>> {
    ...
    let black_paint = Paint::new(Color4f::new(0.0, 0.0, 0.0, 1.0), None);
    // We need a new paint, since we want our bubble to be a light grey color so
    // that it shows up behind the black text
    let line_id_bubble_paint = Paint::new(Color4f::new(0.8, 0.8, 0.8, 1.0), None);

    ...

    let draw_times = |...| {
        for ((line_id, destination), journeys) in lines_destinations_to_journeys {
            let bounds = text_bounds(
                line_id,
                (x1 + 20.0, y),
                &font,
                &line_id_bubble_paint,
            )
            .with_outset((8.0, 8.0));
            canvas.draw_round_rect(bounds, 24.0, 24.0, &line_id_bubble_paint);
            canvas.draw_str(line_id, (x1 + 20.0, y), &font, &black_paint);

            ...
        }
    };

    ...
}

Also, now that we know the exact X-coordinate where our Line ID (and associated bubble) will end, we can use this to place the destination string with exactly 15 pixels of padding room.

canvas.draw_str(destination, (bounds.right + 15.0, y), &font, &black_paint);

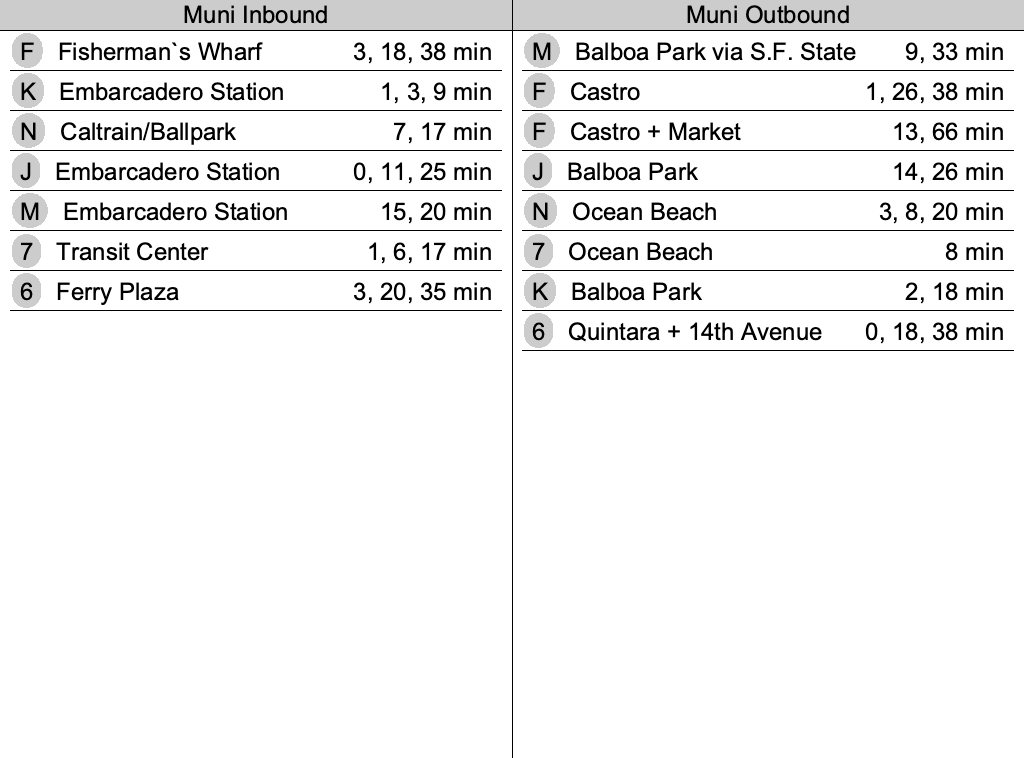

These two small changes produce something that already looks leagues better.

The last change that we’ll look at in detail here is to add column headers to the page.

We’ll accomplish this by drawing a light grey rectangle at the top of the page, then writing our column IDs inside the two halves of that rectangle, center-aligned. We’ll also need to adjust the starting value for y in our draw_times function to 60.0 to compensate for the new top of the image.

...
let width = 1024.0;
let height = 758.0;
let midpoint = 512.0;

canvas.draw_rect(Rect::new(0.0, 0.0, width, 30.0), &line_id_bubble_paint);
canvas.draw_str_align(
    "Muni Inbound",
    (midpoint / 2.0, 23.0),
    &font,
    &black_paint,
    Align::Center,
);
canvas.draw_str_align(
    "Muni Outbound",
    (midpoint + midpoint / 2.0, 23.0),
    &font,
    &black_paint,
    Align::Center,
);
canvas.draw_line((0.0, 30.0), (width, 30.0), &black_paint);

draw_times(inbound_journeys, 0.0, midpoint);
...

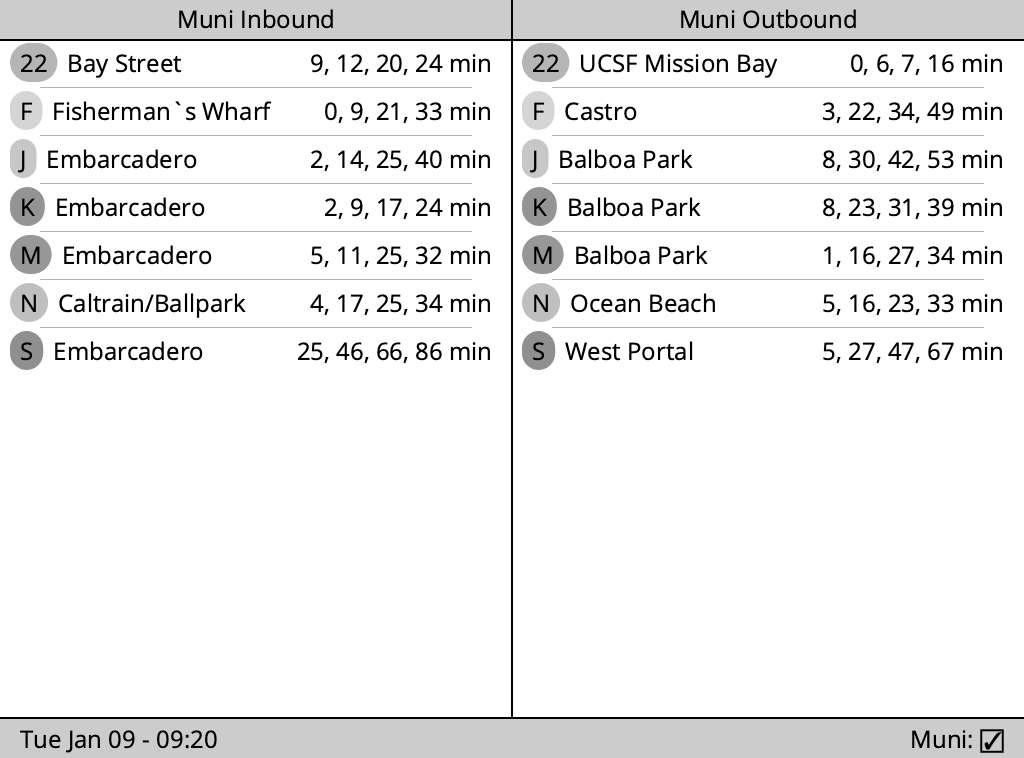

Running this now, we get something that looks (I think) quite serviceable.

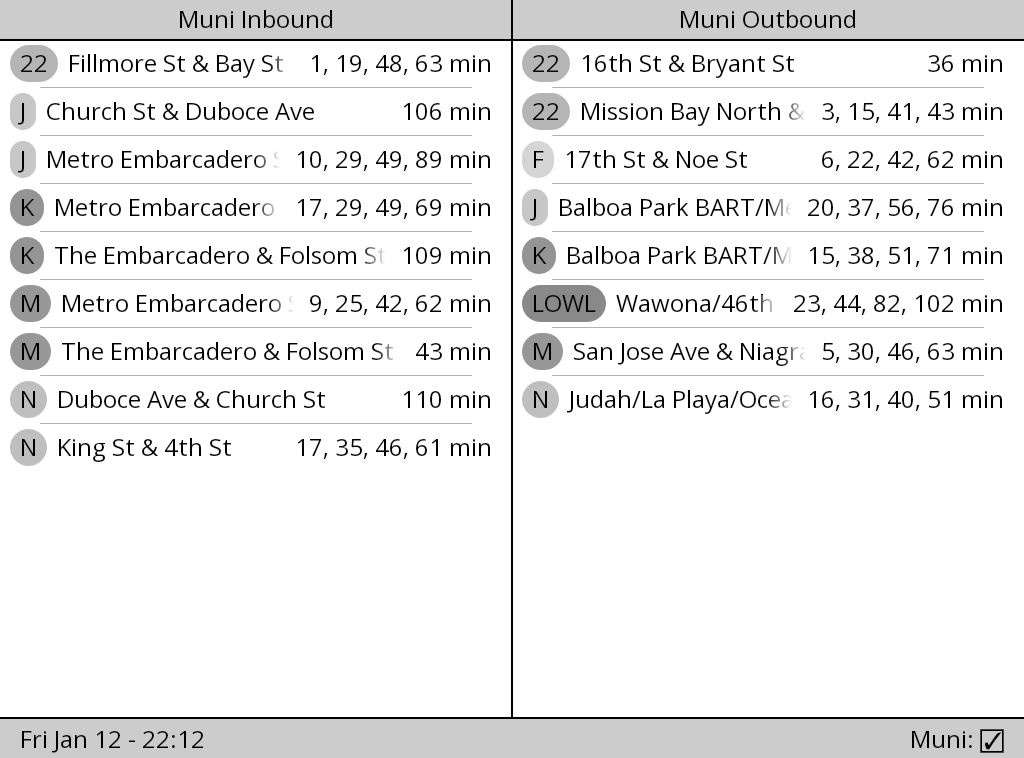

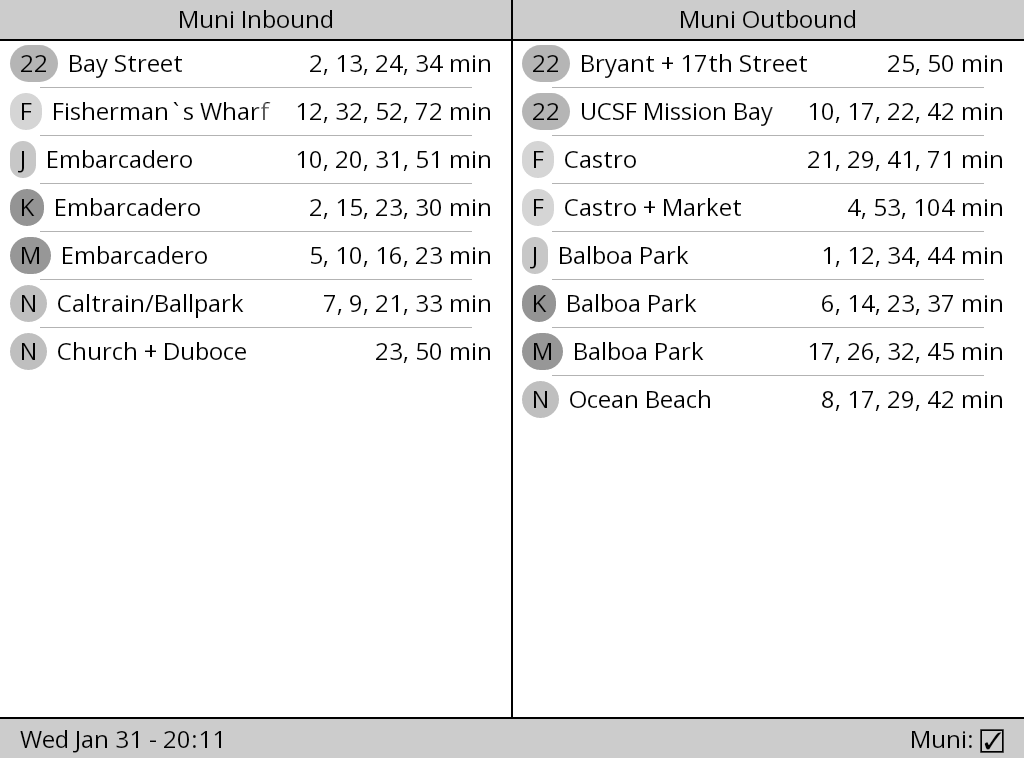

I did do more refinements after this, but I’m not going to discuss them in detail in this blog post.

Now that we have the image sorted, making a deployable version of this server is just a matter of removing the “cache the data forever” code that’s at the top of the HTTP handler.

async fn get_image() -> eyre::Result<Vec<u8>> {
    let client = Client::new();

    let response_txt = client.get("http://api.511.org/transit/StopMonitoring?api_key=[your_key]&agency=SF").send().await?.text().await?;
    let response: StopMonitoringResponse = serde_json::from_str(&response_txt)?;
    ...
}

# Fin.

And that’s all I’m gonna cover in this one! This is the longest blog post I’ve ever written (it’s longer than some of the chapters of my book!). This project has been in flight for a very long time. The BART-screenshot-powered version of this Kindle project was working around February of 2023, and I put the final UI polish on the Rust rewrite in January 2024. There are a few things that I didn’t cover in here because it just seemed like the post was getting long enough as it is:

• The caching system that fetched API data continuously in the background so that the HTTP server is very fast
• Extra pieces of the UI - time in the lower left corner and data cache status in the lower right corner
• Anti-aliasing
• Cutting off destination names if they stretch into the arrival time area so the strings don’t overlap (with gradient!)
• Setting different grey colors for each of the lines so that they can be slightly more quickly distinguished
• Making the whole thing config file driven
• Error-handling - the real version of the server will return a PNG file displaying the error and it’s .source() chain, so that it’s clearly visible on the Kindle

Something that might not be obvious to people that haven’t done this kind of writing is that you basically have to re-do the project in slow motion when you write a post like this (unless you’re writing the blog post as you’re prototyping, but I wouldn’t recommend that). The steps that we took in building up the UI were different than the steps that I took when building it myself, because it took me a while to figure out the right way to do things. Here are some of the intermediate states that I took when building the UI, along with the final current state.

The final (simplified) code for the server we built together is on my github here, and the server that I actually use to power the Kindle on my wall is here. Thanks for reading!
