ESPHome LED Controller

Posted on Nov 9, 2023 Reading Time: 6 minutes 💖

I was recently given a very thoughtful gift, a custom LED sign from Custom Neon reading “Stay Silly.”

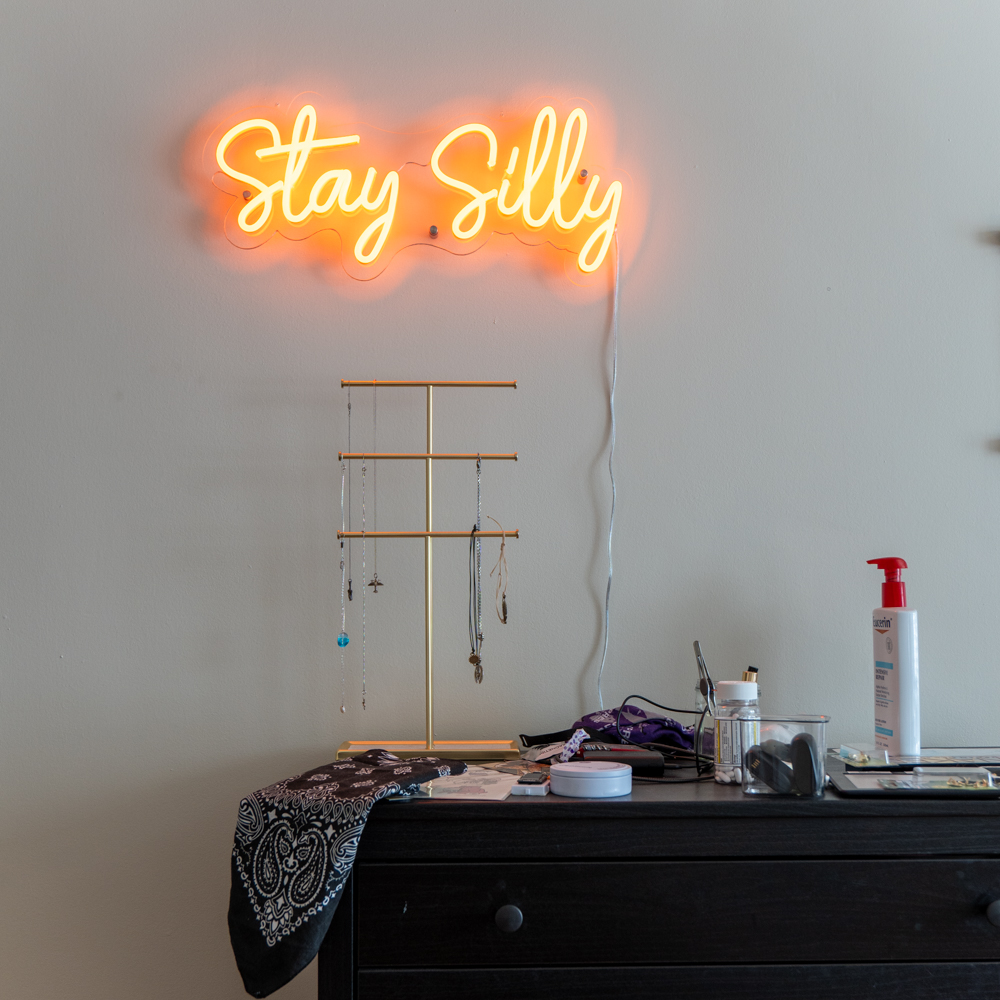

image of my “stay silly sign” lit up on the wall

I first heard this from Maia Arson Crimew earlier this year in a Twitter post about being investigated by US Congress after it discovered a vulnerability in an airline’s storage of the FAA no-fly list.

screenshot of a tweet thread from @_nyancrimew saying “congress is investigating now :)” “but i stay silly :3”

I and a lot of other people found this endearing and so started saying it frequently when faced with any kind of adversity or stress. One of my partners noticed this and she got me this beautiful sign.

The sign came with a small box that sat between the power supply and the light, and an IR remote to control it. The remote let me turn the light on and off, change the brightness level, and display a few pre-programmed light patterns such as flashes and fades.

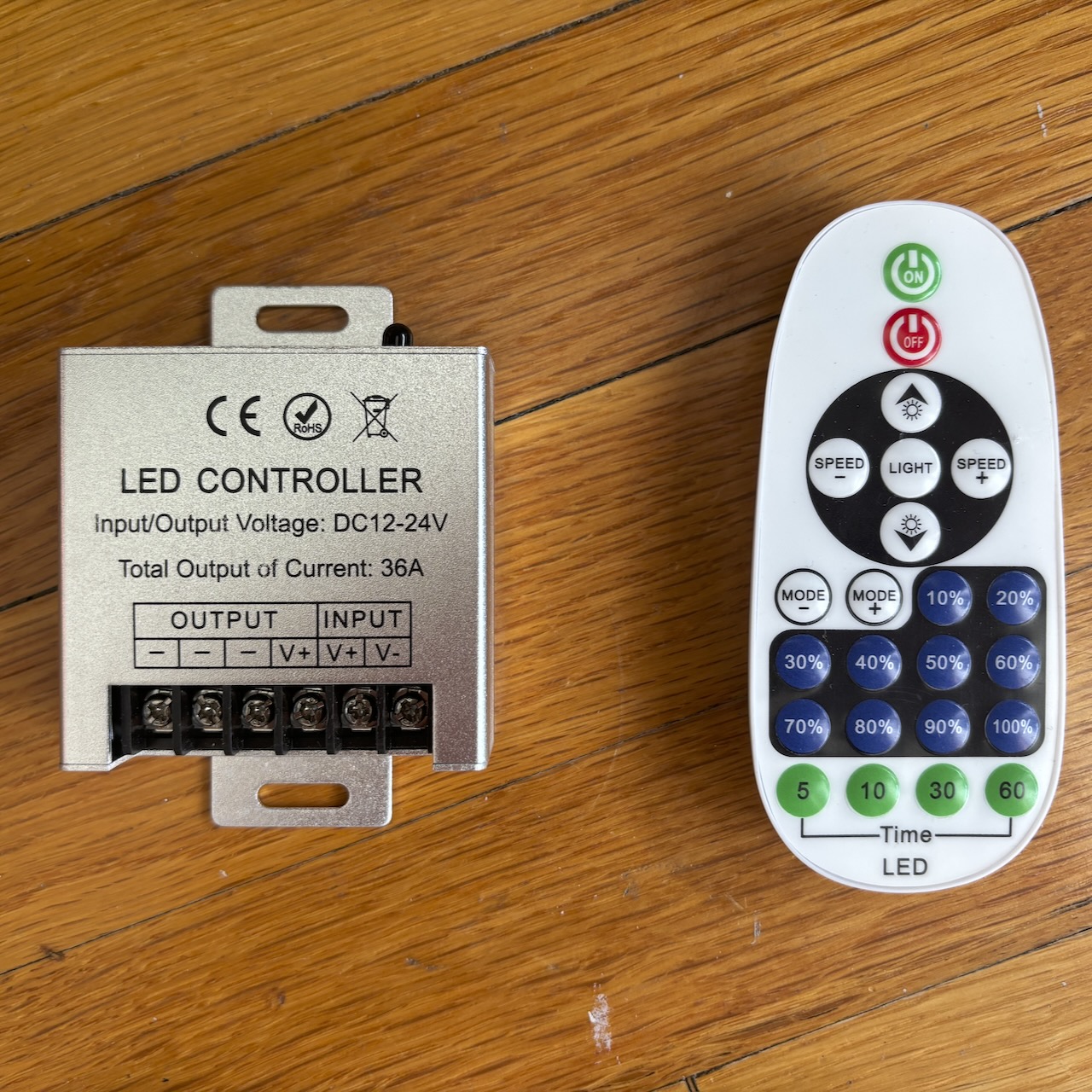

image of the control box and remote that came with the sign

I loved the sign but I did somewhat bristle at the control options that were available out of the box. I have recently been experimenting with using open source home automation software and this seemed like the perfect fit. I wanted the ability to turn the light on and off from my phone/siri without finding a remote, and I disliked the hard on/off cutover that this controller had, I wanted it to fade on/off. I immediately saw this as an opportunity for a project. Initially, I considered attaching a microcontroller with an IR blaster to the existing controller and emitting IR signals to control the light. This would have allowed me to control the light using my phone, but wouldn’t have solved the fade in/out problem. I could have issued brightness changing IR commands, but those had no intermediate states so the brightness would have gone from 0% to 10% to 20% in instantaneous steps.

On the advice of my friend Chloe, I decided to replace the entire controller!

Before I can replace the controller, I need to understand how it works. This seemed straightforward enough. I looked at the power supply and found it to be rated to output DC 12V 6A. I connected a multimeter to the output pins of the controller box and turned the light on, to find that it was also outputting DC 12V. I changed the brightness and found that the voltage was being stepped down at around the same rate as I was decreasing the brightness, and reasoned that the light’s brightness was probably simply controlled by changing the voltage provided to it. Opening up the control box confirmed this, showing that there was a small microcontroller and some MOSFETs between the input and output pins.

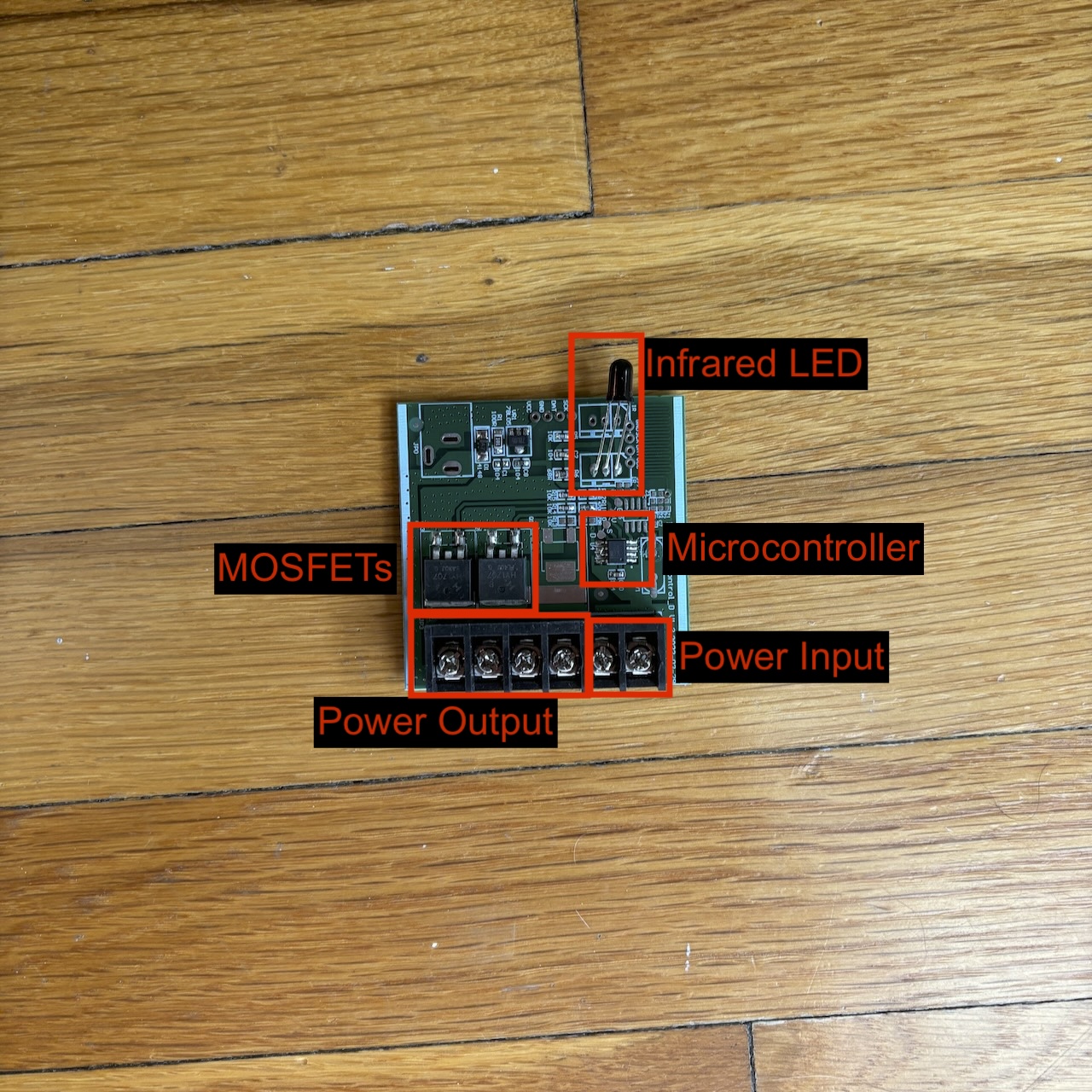

image of the control box’s circuit board

With this information, I reasoned that I could probably replace the control box fairly easily. Coincidentally, Chloe was just about to start shipping out her ESP-32-C3-based development kit specifically designed for ESPHome integration, the Voidbox Flip-C3, and she had some advice for me on how to approach the project. I bought one of her boards and she was even so kind as to give me a MOSFET breakout board for my project. All I needed to do was to solder the header pins onto the two boards, connect them to each other, and write the software for controlling the light.

First up was soldering, and while I do have a few shitbox radio shack soldering irons floating around my moving-box-filled apartment, I decided to go into Queerious Labs to use their much more capable and much less annoying Hako soldering station. This also provided me the opportunity to make a friend, who helped me test the MOSFET afterwards because I don’t know anything about circuits! (I almost failed E&M)

aside

Hackerspaces like Queerious Labs are super valuable not just as workspaces for people doing interesting projects in cities like SF (most people here don't have garages or a bounty of space for projects), but also as social hubs for meeting like-minded hackers and makers. A free, radically inclusive hackerspace like QL is especially cool.

Now that I’d done the basic wiring, I had a microcontroller connected to some MOSFETs, and the barrel plugs that the 12V system used were screwed into the terminals of the MOSFET breakout board. All that was left was to write the software tying it all together. Luckily a lot of this work was already done for me in the form of ESPHome.

ESPHome is a YAML-based framework for writing firmware for ESP-32-based microcontrollers and controlling them with the Home Assistant open-source home automation software. This means that we can write a few small YAML files, which will be turned into C++ code and compiled into a firmware binary for the ESP-32 chip. ESPHome abstracts away a lot of the common things you might need to worry about:

  • Connecting to Wi-Fi
  • Logging
  • mDNS for rapidly finding/connecting to new devices
  • Common protocol for talking between devices & Home Assistant
  • Over-the-air updates
  • Integrations with common electronics hardware (sensors, lights, displays, touchscreens, etc)

Having all of this as a base is extremely valuable, I probably wouldn’t take the time to make something as full-featured as an ESPHome firmware build by hand with C++! But I did have one problem though. I really don’t like YAML (actually lots of other people dislike it too). I do sometimes write YAML for work, but since this is a silly personal project, I figured I could get away with not writing YAML. I reached for (what I think is) a reasonable choice for a project like this, Jsonnet. Jsonnet is a configuration language that’s a superset of JSON with support for things like variables, expressions, loops, conditionals, etc. I was first introduced to it by using the Grafonnnet library at work to generate Grafana dashboards.

Jsonnet lets you do things like this:

local one_thru_five = std.range(1, 5);

{
  values: [
    {
      id: idx,
      value: one_thru_five[idx],
      double: one_thru_five[idx] * 2
    }
    for idx in std.range(0, std.length(one_thru_five) - 1)
  ],
}

Which would expand into the following JSON

{
  "values": [
    {
      "double": 2,
      "id": 0,
      "value": 1
    },
    {
      "double": 4,
      "id": 1,
      "value": 2
    },
    {
      "double": 6,
      "id": 2,
      "value": 3
    },
    {
      "double": 8,
      "id": 3,
      "value": 4
    },
    {
      "double": 10,
      "id": 4,
      "value": 5
    }
  ]
}

Jsonnet is a language that’s compiled/expanded into JSON. Since YAML is a strict superset of JSON, we can also say that Jsonnet expands into valid YAML. So we can write Jsonnet and have that expanded to JSON, then feed that JSON into ESPHome. ESPHome will take the JSON, expand that into C++, compile that C++ into firmware, and ship it to the microcontroller via an OTA update process.

flowchart. jsonnet node templates yaml node templates c++ node compiles into firmware node goes into OTA update process node goes into microcontroller

This process is very silly but it does mean that I don’t have to write YAML, which I think is pretty neat.

four panel comic, dialogue between a user and esphome. panel 1: user: i want to program microcontrollers but i don’t want to write c++. panel 2: esphome: here, you can write yaml that gets converted into C++. panel 3: user: i don’t like yaml so i’m going to write jsonnet and convert that to yaml and convert that to C++. panel 4: esphome: u wot

But most people are not actually going to be using this silly flow that I’ve built up. Most ESPHome users should be perfectly happy using their YAML config files. The actual YAML that you need to control this light (assuming the MOSFET is on pin 7) is this:

light:
  - effects:
      - pulse:
          name: gentle pulse
          transition_length: 2s
          update_interval: 2s
    name: Silly Light
    output: gpio_7
    platform: monochromatic
output:
  - id: gpio_7
    pin: GPIO7
    platform: ledc

So when all of this gets put together, I ended up with a very nice light that I can control via Home Assistant easily, and when I turn it on and off, I get a nice beautiful fade :)
